HD Backlit Interface

This next-generation interface panel is bright and easy to read in any environment.

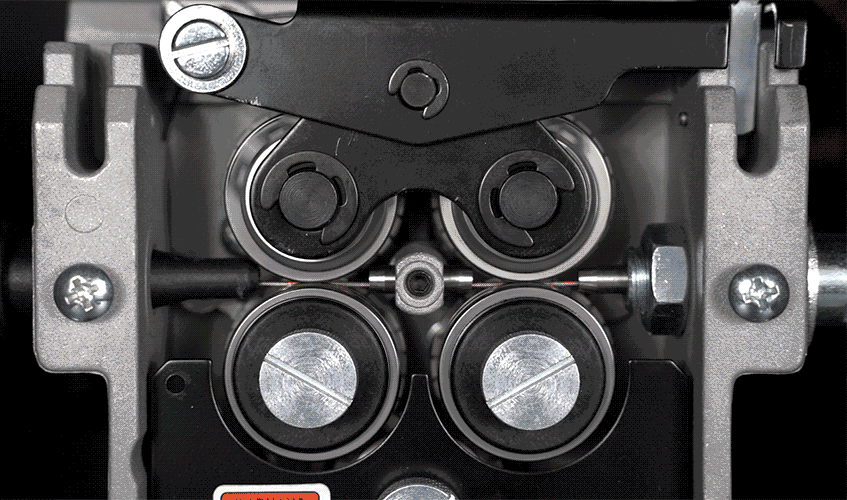

4-GEARED WIRE DRIVE

The most consistent and smoothest wire-feeding experience there is. With a four geared wire drive unit, there’s more power pushing the wire, improving the wire feeding, especially in longer torches.

GAS & GASLESS MIG

Capable of running both gas-shielded and gasless MIG wire, you can to tackle a wide variety of welding projects with ease. Whether you’re working with mild steel, stainless steel, aluminium, or flux-cored wire, our machine has got you covered.

Multi-Process Welding

Get the job done quickly and efficiently with our versatile three-in-one welding machine. With the ability to perform MIG, TIG, and MMA (STICK) welding all in one unit, you can save valuable time and effort without sacrificing quality.

Smart Fan

Smart Fan diminishes noise, saves power, helps reduce energy costs, and minimises the number of contaminants being pulled through the machine.

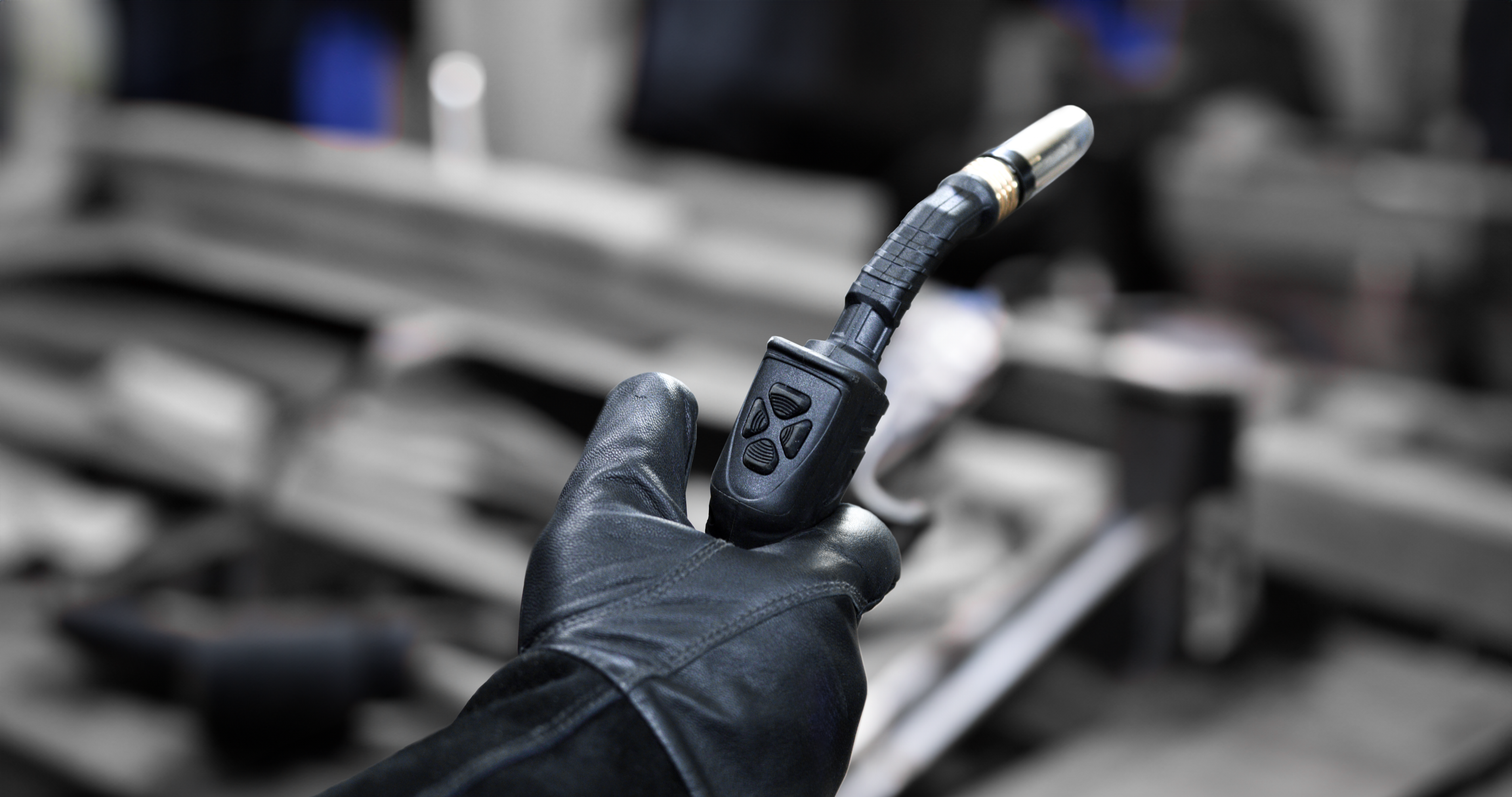

M4 MIG Torch

Our MIG torch allows you to adjust your settings on the fly. No more hassle of constantly adjusting your settings on a separate control panel. With our leading technology, you can easily fine-tune the amps, current and voltage at the touch of a torch button.

Synergic MIG Control

Getting set up for a weld has never been faster with our preset synergic programs. Simply select your wire type, wire size, gas type and material thickness, and the machine does the rest. It’ll pick the optimal settings for your weld.

Trigger Controlled DC Lift Arc TIG

The Trigger Controlled DC Lift Arc ignition allows the arc to be started easily in DC TIG by simply touching the tungsten to the workpiece and lifting it up to start the arc. This stops the tungsten tip sticking to the workpiece and breaking the tip from the tungsten electrode.

Advance MMA Features

This machine features Anti-Stick technology, as well as adjustable Arc Force and Hot Start functionality. These features are designed for improving weld quality and ease of use.

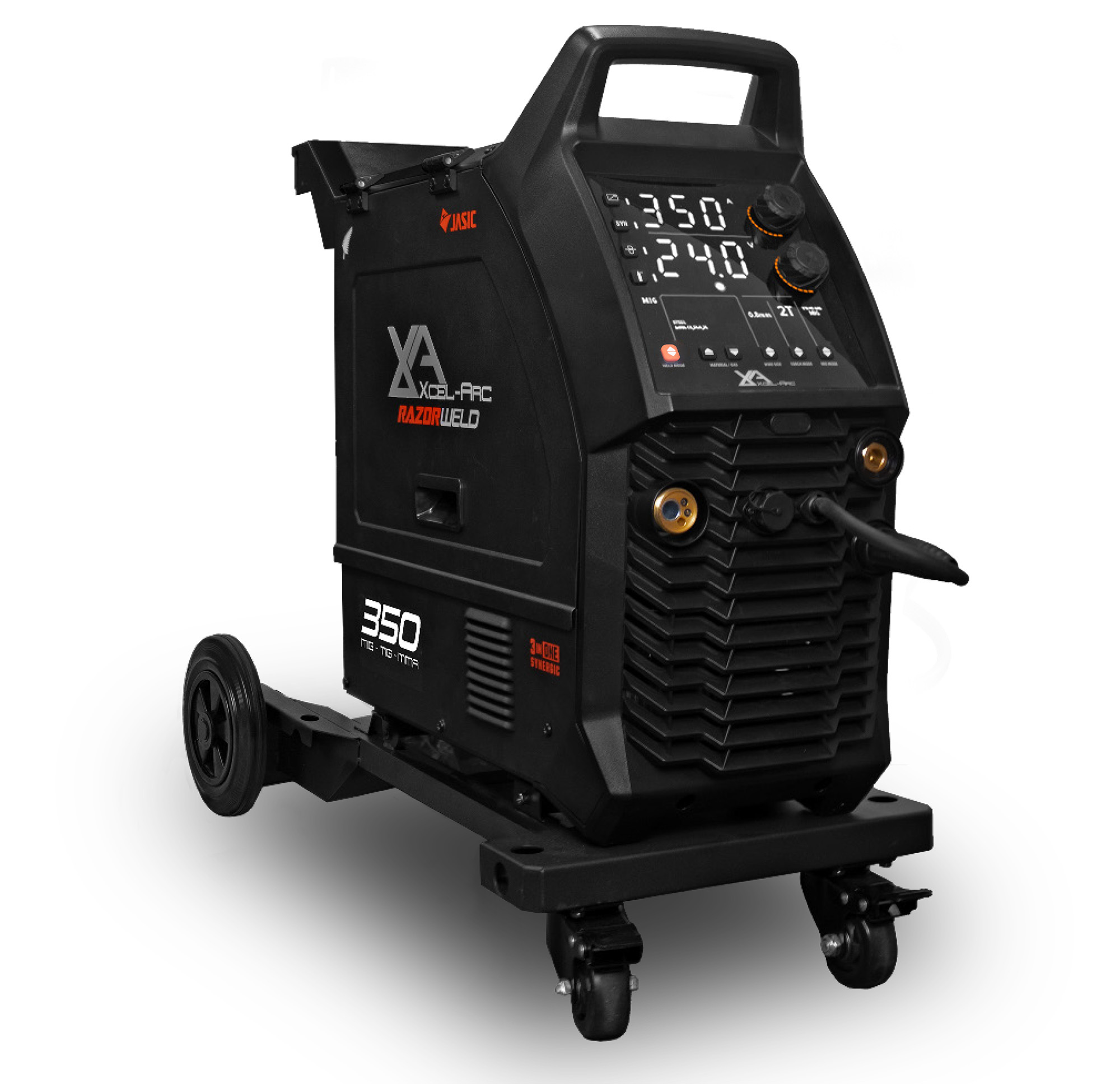

Get superior MIG, TIG & STICK performance even in the toughest conditions with the professional machine in a compact case.

Quick and easy setup with synergic MIG programs

Spool gun and Push-Pull gun compatible for the best aluminium welds

4-geared wire drive system for the ultimate wire feeding experience

A 5-year warranty to reflect our confidence in this machine

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE 415V - 3Ph

SUPPLY PLUG 32Amp

Ieff (A) 12.6

Imax (A) 21.4

RATED OUTPUT 30A /15.5V - 350A / 31.5V

NO LOAD VOLTAGE (V) 80.0

PROTECTION CLASS IP23S

INSULATION CLASS H

MINIMUM GENERATOR (kVA) 20

DINSE CONNECTOR 35/50

STANDARD AS/NZ60974-1

SUITABLE MATERIAL

MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze / MMA: Mild Steel, Stainless Steel, Cast Iron / TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze"

WARRANTY (Years) 5

MIG Specifications

MIG WELDING CURRENT RANGE 30-350A

MIG DUTY CYCLE @ 40°C 40% @ 350A 60% @ 285A 100% @ 221A

MIG WIRE SIZE RANGE 0.6-1.2mm

MIG WIRE SPOOL SIZE 5kg / 15kg

MIG WELDING THICKNESS RANGE 1-16mm

DRIVE ROLLER SIZE 37/24

TIG SPECIFICATIONS

TIG FUNCTION TYPE DC Lift Arc

TIG WELDING CURRENT RANGE 20-350A

TIG DUTY CYCLE @ 40°C 40% @ 350A 60% @ 285A 100% @ 221A

TIG WELDING THICKNESS RANGE 1-10mm

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE 20-350A

STICK DUTY CYCLE @ 40°C

40% @ 350A 60% @ 285A 100% @ 221A

STICK ELECTRODE RANGE 2.5-4.0mm

STICK WELDING THICKNESS RANGE 2-16mm

Size & Weight

DIMENSIONS (mm) 977 x 480 x 753

WEIGHT (kg) 45.10

MACHINE FEATURES

WIRE DRIVE 4 Geared

VRD Yes

SPOOL GUN CONNECTION Yes

PUSH / PULL GUN CONNECTION Yes

FOOT CONTROL CONNECTION Yes (TIG)

BURNBACK ADJUSTMENT Yes

WIRE INCH Yes

INDUCTANCE CONTROL Yes

THERMAL OVERLOAD PROTECTION Yes

PRODUCT CODE XA-RZMIG350W-K
