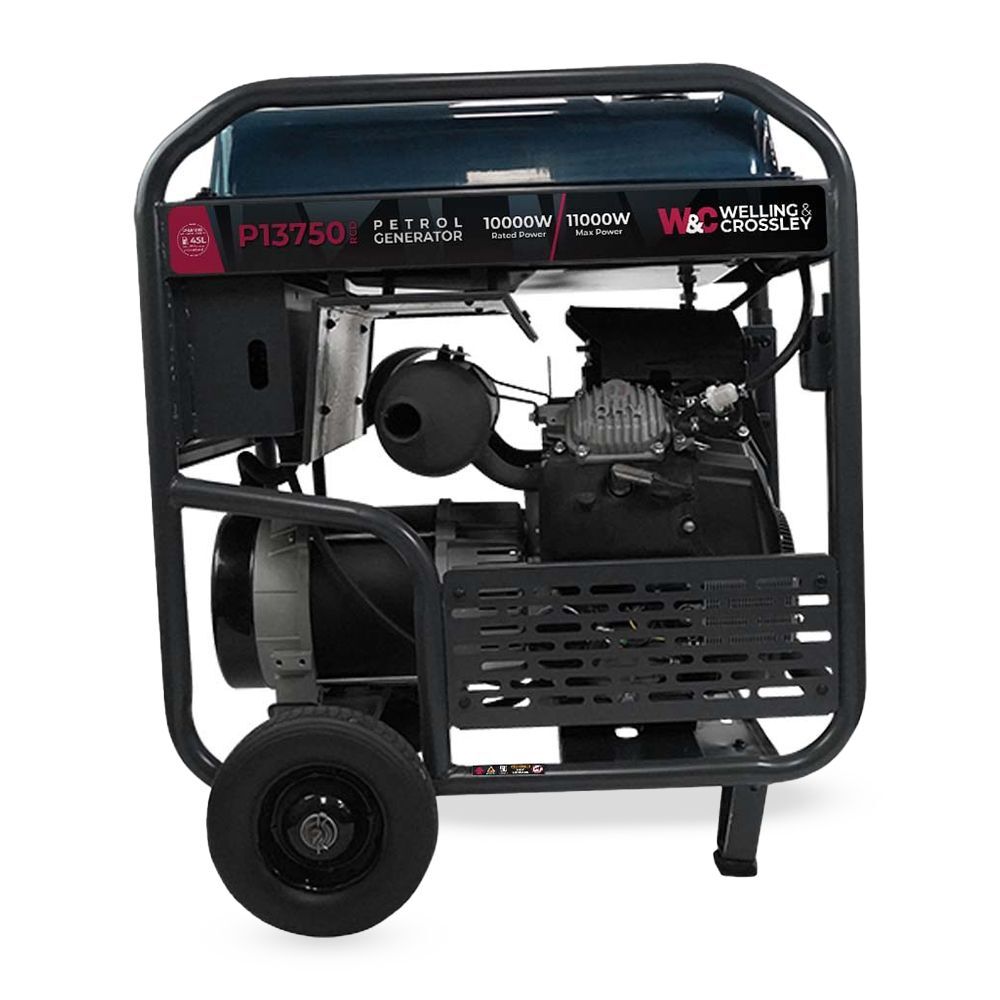

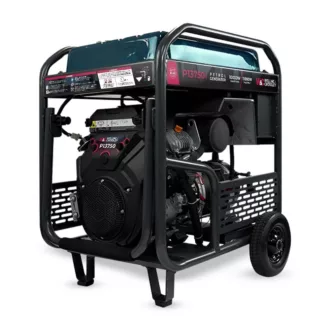

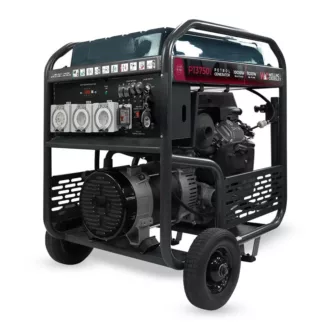

Welling & Crossley WC-P13750RCD (811988) 13.75kVA 11000W Open Frame AVR Petrol Generator with E-Start & RCD

The Welling and Crossley P13750RCD is a powerful 10,000W open-frame AVR (Automatic Voltage Regulated) petrol generator equipped with a convenient electric start and RCD (Residual Current Device) for protection against electrical faults. Designed for efficiency and ease of use, this generator comes with a transport kit, including handles, wheels and lifting bar, for easy mobility. Compliant with Euro 5 emissions standards, the WC-P13750RCD has a generous 45L fuel tank and an economical motor, providing reliable, clean, and consistent power for running multiple appliances over extended periods. Whether you’re preparing for emergencies or powering remote sites, the WC-P13750RCD can supply the energy you need.

Features:

RCD (Residual Current Device): An RCD is a safety device that quickly cuts off the power supply if it detects an imbalance between live and neutral currents - which can indicate a leakage current through a person or a fault in the circuit. This helps to prevent electric shocks.

AVR (Automatic Voltage Regulator): An AVR stabilises the output voltage of a generator, preventing fluctuations that can damage electronic equipment. It ensures a steady and consistent voltage level, enhancing the safety and reliability of the generator.

2-Wire Start: This feature allows the generator to be started remotely from the closing of a remote contact. This could be an automatic transfer switch (ATS) in the event of a power failure, a float switch or any device that can provide a closed circuit as a start signal

Fuel Efficient: This refers to how much power a generator can produce relative to its fuel consumption. Fuel-efficient generators run longer on less fuel, saving money and reducing the frequency of refuelling, which is particularly important for extended use.

Multiple start options: Push-button electric start, wireless remote start, 2-wire remote start

Large fuel capacity: 45L petrol tank - extended run times with an economical motor, ideal for prolonged use

Powerful & efficient: 4-Stroke, air-cooled, OHV engine - reliable performance for a variety of applications

Heavy duty wheels, handle and lifting bar: Designed for easy transportation and mobility, the lifting bar to aid in vertical mechanical lifts

Digital V/F/T display: 3-in-1 display - easy-to-read display shows Volts, Frequency and Time for convenient monitoring

Specifications:

Model Rating:13.75kVA

Max AC Output 11000W

Rated AC Output 10000W

Voltage 240V AC

Type Open Frame AVR with RCD

Frequency 50Hz

Connections

- 2 x IP66 15A

- 1 x IP66 32A

- 1 x USB-A (18W)

- 1 x USB-C (15W)

Engine: WC-690

Type: Twin cylinder, 4 stroke, OHV air-cooled petrol

Displacement: 688cc

Speed: 3000rpm

Low Oil Protection / Warning: Fitted

Ignition System: TCI

Starting Type: Recoil / Electronic / 2-Wire / Wireless Remote

Fuel Tank Capacity: 45L

Fuel Consumption: 2.2 L/hr @ ¼ load

Operating time at 25% Load: 27hr

Noise Level @ 7m: ＜90dBA

Oil: 1.5L SAE10W-30

Spark Plug: NGK BPR6ES

Fuel Type: Petrol - 91 octane unleaded

Power Factor: 0.8

Dimensions (L x W x H): 790mm x 620mm x 790mm

Weight: 160kg

Warranty:

2 Year Limited Warranty Covered by Welling & Crossley

Product Code: WC-P13750RCD
