For supporting pipe 13 - 300mm diameter (1/2”-12”)

Description:

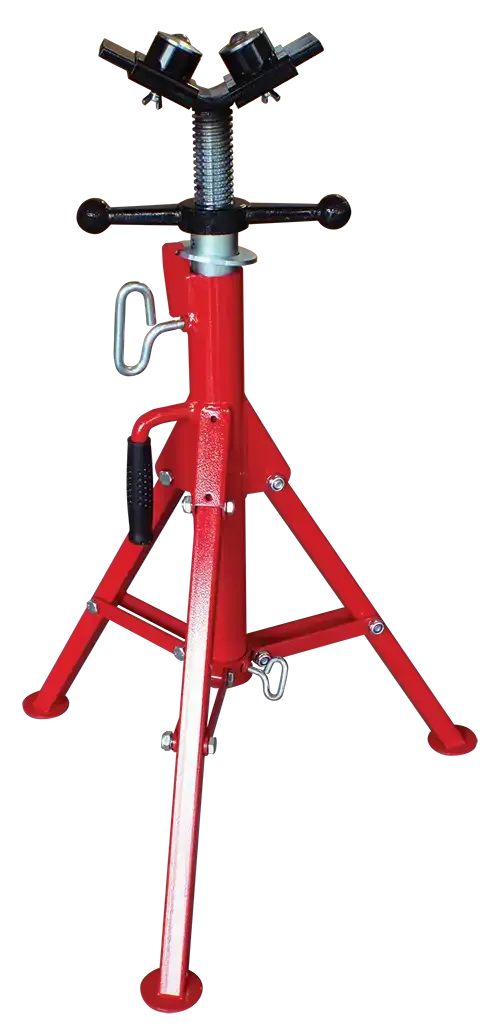

Garrick's Ball Transfer V Head is ideal for use with threading machines, roll grooving, or other pipe working applications.

Quickly adapts to your pipe size being worked on, allowing for rotating or feeding pipes.

Features:

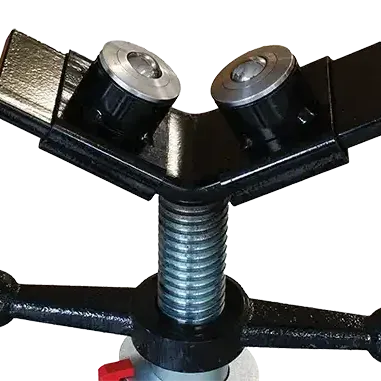

Ball style V head supports pipe for fast transfer, while keeping it centred.
Locking ring allows for quick vertical height adjustments
Can be folded up for easy transportation and storage
Max load weight 450kg
Adjustable height 710 - 1320mm

Specifications:
Pipe Size Supported 13 - 300mm
Operating Height 710 - 1320mm
Max. Capacity 450kg
Measurements 790 x 260 x 200mm
Shipping 17kg / 0.041m3

MODEL VHP-STAND
