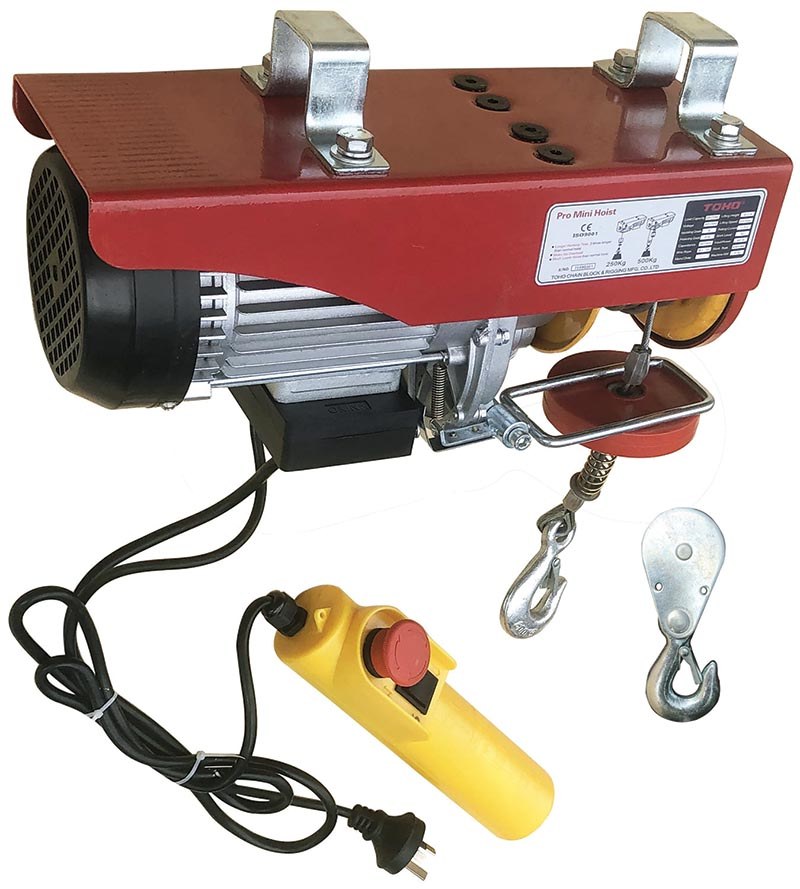

Model No. TPMEH500 (500kg)

Running time is 3 times longer than a normal mini hoist

Lifting Speed: 10m per min when using single line, or 5m per min when using double line

Up/Down controls with emergency stop button

Lifting height 12m on single rope or 6m using double rope

Automatic brake/cut off

Anti-heat device on motor

Single rope capacity: 250kg

Double rope capacity: 500kg

900W motor

Control pendant length 1.5m

IP Rating

– Hoist: IP45

– Corded Control: IP45

Options available

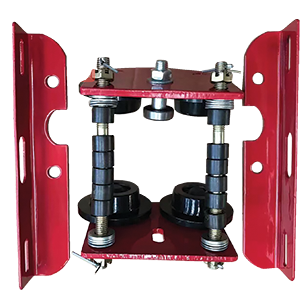

TPMEH-TROLLEY - Hoist Trolley

Product Code: TPMEH500
