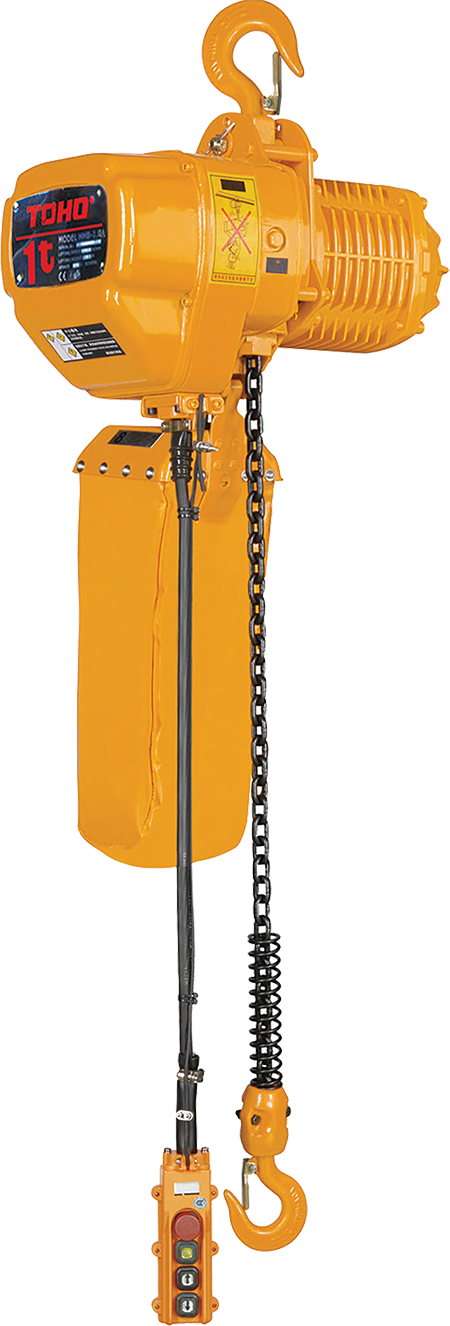

TOHO Three Phase, Two Speed Electric Chain Hoists
Load Limited
Thermal Overload Prevention
Emergency Stop
Light weight, compact design with high efficiency motor
Pressed steel structure, high strength body
High tensile alloy steel top & bottom hooks
Grade 80 - Alloy Steel load chain
Limit switches fitted at top and bottom ends to prevent chain runout
415V 50Hz Three Phase
IP Rating: Hoist IP54 / Control IP65
Models:
1, 2 and 3 Tonnes Standard Hoists ex. stock NZ
TECH3PH-0103 - 1T x 3m
TECH3PH-0106 - 1T x 6m
TECH3PH-0206 - 2T x 6m
TECH3PH-0303 - 3T x 3m
5 Tonne Standard Hoist INDENT ONLY FROM AUSTRALIA
TECH3PH-0503 - 5T x 3m
Re-chain options available
| Model | Size (T) | Standard Lift (m) | Running Test Load (kN) | Motor Power (kW) | No. of Chain | Dia of Chain (mm) | Lifting Speed (m/min) | Net Weight (kg) | Extra weight per metre of extra lift (kg) |
|---|---|---|---|---|---|---|---|---|---|
| TECH3PH-0103 | 1 | 3 | 12.5 | 1.8 | 1 | 7.1 | 6.9/2.3 | 59 | 1.1 |
| TECH3PH-0106 | 1 | 6 | 12.5 | 1.8 | 1 | 7.1 | 6.9/2.3 | 62.3 | 1.1 |
| TECH3PH-0206 | 2 | 6 | 25 | 3.0 | 1 | 10 | 6.8/2.3 | 115 | 2.3 |
| TECH3PH-0303 | 3 | 3 | 37.5 | 3.0 | 1 | 11.2 | 5.4/1.8 | 123 | 2.8 |
| TECH3PH-0503 | 5 | 3 | 62.5 | 3.0 | 2 | 11.2 | 2.7/0.9 | 151 | 5.6 |
Note: Test Tag Certification available on request for the majority of lifting equipment at extra charge.
