Models:

TECH0103 - 1T x 3m

TECH0106 - 1T x 6m

TECH0203 - 2T x 3m

TECH0206 - 2T x 6m

TECH0206-ET - 2T x 6m (with Electric Trolley)

0.5 Mini Hoist, 1 and 2 Tonne Standard Hoists ex stock - re-chain options available

Load Limited

Thermal Overload Prevention

Emergency Stop

Light weight, compact design with high efficiency motor

Pressed steel structure, high strength body

High tensile alloy steel top & bottom hooks

Grade 80 - Alloy Steel load chain

Limit switches fitted at top and bottom ends to prevent chain runout

240V, 50Hz Single speed Motor 1200W. (Single Phase)

IP Rating: Hoist IP54 / Control IP65

Options available

TECH0206-ET Integrated Electric Trolley (2T, 6m lift)

TECH-RP Wireless Remote Control (retro-fitted)

MODEL	Size (T)	Standard Lift (m)	Running Test Load (kN)	Motor Power (kW)	No. of Chain (mm)	Dia of Chain (mm)	Lifting Speed (m/min)	Net Weight (kg)	Extra weight per metre of extra lift (kg)
TECH0103	1	3	12.5	1.2	1	7.1	6	60	1.1
TECH0106	1	6	12.5	1.2	1	7.1	6	63	1.1
TECH0203	2	3	25	1.2	2	7.1	3	65	2.2
TECH0206	2	6	25	1.2	2	7.1	3	71	2.2
TECH0206-ET	2	6	25	1.2	2	7.1	3	71	2.2

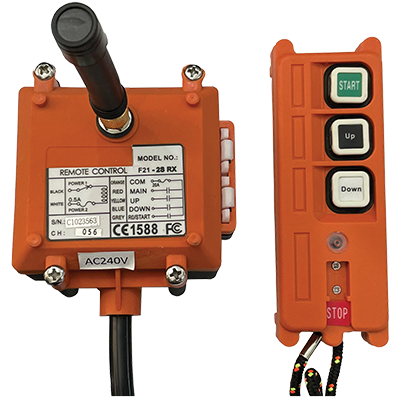

TECH-RP Remote Control

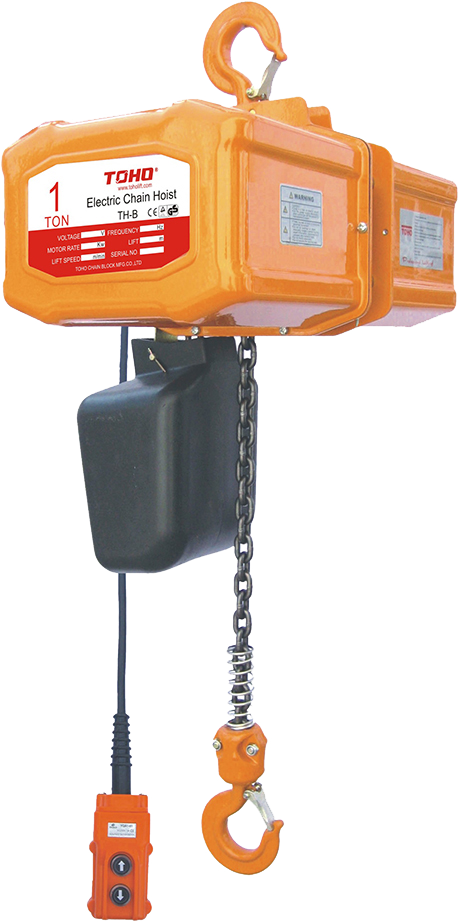

Product Code: TECH0103

Warning Safety Notice: Inching
Inching refers to repeatedly starting and stopping the hoist motor in short bursts to achieve precise load positioning. This practice can cause excessive wear, motor overheating, and brake failure, and may void the manufacturer's warranty due to misuse.

For applications requiring slow or precise movement, we strongly recommend using a two-speed hoist or one equipped with inverter control.
