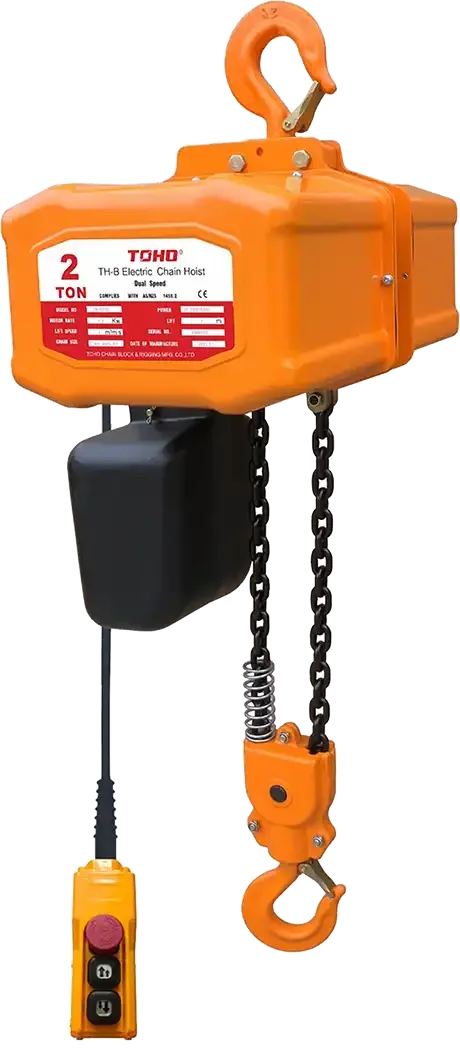

TOHO 1-phase, Two Speed Electric Chain Hoists Sizes Available
Please enquire at your nearest store
- Alexandra
- Blenheim
- Avondale
- Thames
- Matamata
- Masterton
- Gore
- Hornby
- Rotorua
- Rangiora
- Pukekohe
- Palmerston North
- Whanganui
- Whakatane
- Westport
- Tokoroa
- Timaru
- Te Awamutu
- Taupo
- Takaka
- Oamaru
- North Shore
- New Plymouth
- Napier
- Mt Maunganui
- Morrinsville
- Invercargill
- Hawera
- Greymouth
- Gisborne
- Frankton
- Dargaville
- Ashburton
- Nelson
Re-chain options available
Models:
TECH-2SP-0103 - 1T x 3m
TECH-2SP-0106 - 1T x 6m
TECH-2SP-0203 - 2T x 3m
TECH-2SP-0206 - 2T x 6m
Two Speed Operation
Load Limited with Thermal Overload Prevention
Light weight, compact design with high efficiency motor
Pressed steel structure, high strength body
Limit switches fitted at top and bottom ends to prevent chain runout
| MODEL | Size (T) | Standard Lift (m) | Running Test Load (kN) | Motor Power (kW) | No. of Chain (mm) | Dia of Chain (mm) | Lifting Speed (m/min) | Net Weight (kg) | Extra weight per metre of extra lift (kg) |
|---|---|---|---|---|---|---|---|---|---|
| TECH-2SP-0103 | 1 | 3 | 12.5 | 1.2 | 1 | 7.1 | 6 | 60 | 1.1 |
| TECH-2SP-0106 | 1 | 6 | 12.5 | 1.2 | 1 | 7.1 | 6 | 63 | 1.1 |
| TECH-2SP-0203 | 2 | 3 | 25 | 1.2 | 2 | 7.1 | 3 | 65 | 2.2 |
| TECH-2SP-0206 | 2 | 6 | 25 | 1.2 | 2 | 7.1 | 3 | 71 | 2.2 |
