This industrial geared head machine drill is manufactured to a premium quality standard to suit heavy-duty applications

Gear Head Drills can be used at higher loads without slippage, and can operate at lower speeds than Belt Drive Drills. This makes them ideal for larger drilling and tapping requirements.

Square tables for larger work area, with ‘T’ slots for solid clamping

Safety Guard with flip up cover over chuck as standard

Emergency stop switches

Rack & pinion table height adjustment

Column & Quill precision machined from thick wall tube for rigidity

Machined base

Includes Drill Chuck & Arbor, Chuck Key and Drill Drift

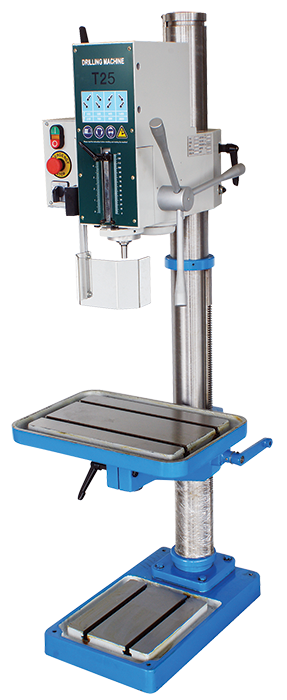

MODEL T25

Motor 2-speed (kW) 0.65 / 0.9 3-phase

Max Drilling Capacity 25mm

Spindle Travel 125mm

Morse Taper MT3

Speeds (rpm) 105, 210, 350, 455, 700, 890, 1450, 2900

Auto Feed No

Shipping 200kg / 0.7m3

Product Code: T25
