Description:

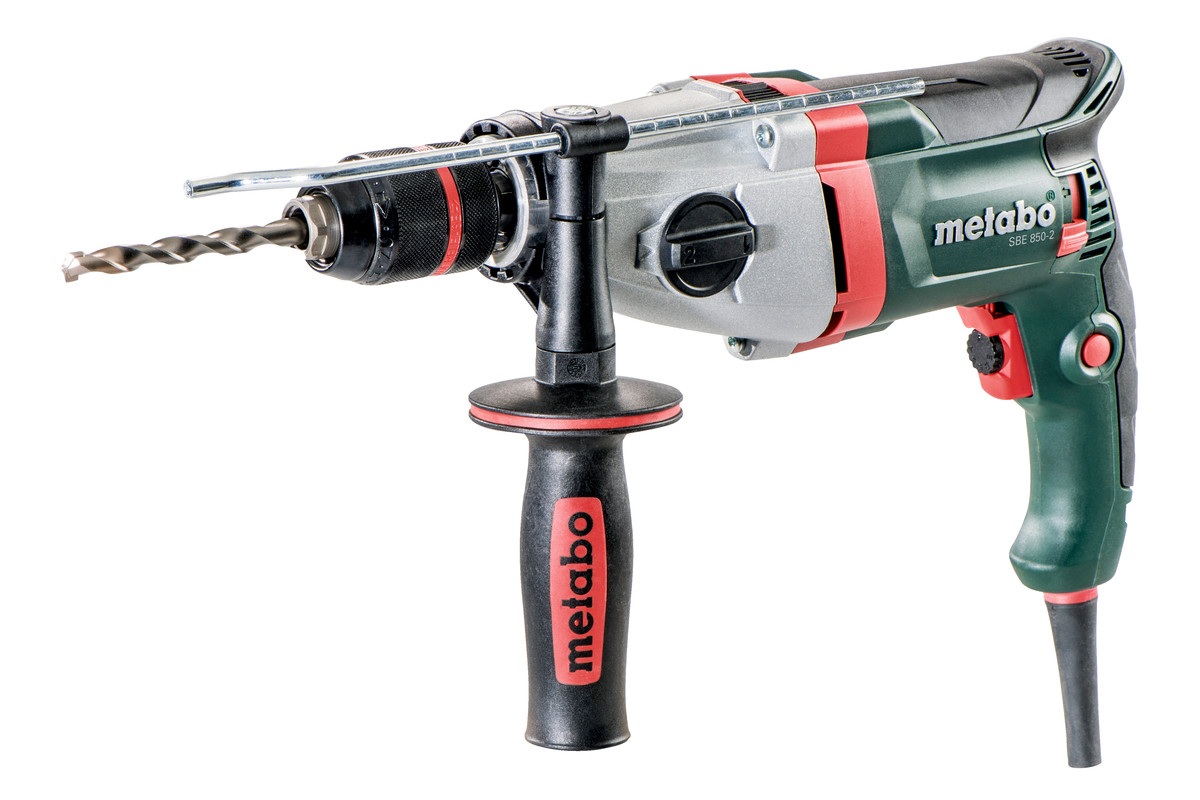

• Powerful two-speed impact drill with variable speed for versatile drilling into almost all materials
• Vario (V)-Electronics for working at customised speeds to suit various application materials
• Thumbwheel for Speed Preselection
• Robust die cast aluminium gear housing for optimum heat dissipation and long service life
• Rotating carbon brush bridge for maximum performance even in anti-clockwise operation, e.g. for the removal of stubborn screws
• Metabo Marathon-motor with dust protection for long service life
• Metabo S-automatic safety clutch: mechanical decoupling of the drive for safe working should the tool stop unexpectedly
• Forward and reverse rotation

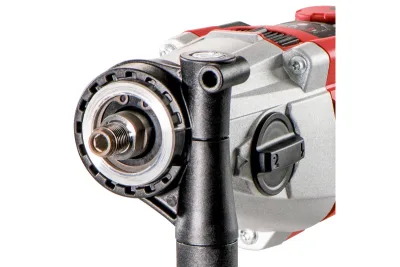

• Spindle with hexagonal recess for screwdriver bits for working without chuck
• Cable-protecting ball joint for optimal freedom of motion when working
• With metaBOX, the intelligent solution for transport and storage

The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.

Technical Data:

Characteristics
Rated input power850 W
Output power490 W
Maximum torque36 / 14 Nm
Drill-Ø masonry20 mm
Drill-Ø concrete18 mm
Drill Ø steel13 / 8 mm
Drill-Ø soft wood40 / 25 mm
No-load speed0 - 1100 / 0 - 3100 rpm
Speed at rated load640 / 1800 rpm
Maximum impact rate58900 bpm
Gears2
Chuck capacity1.5 - 13 mm
Collar diameter43 mm
Drill spindle with hexagonal recess6.35 mm
Drill spindle thread1/2 " - 20 UNF
Chuck clamping typeKeyless chuck
Weight (without power cable)2.6 kg
Cable length4 m
Vibration
Drilling in metal4.2 m/s²
Uncertainty of measurement K1.5 m/s²
Impact drilling concrete17 m/s²
Uncertainty of measurement K1.5 m/s²
Noise emission
Sound pressure level106 dB(A)
Sound power level (LwA)114 dB(A)
Uncertainty of measurement K3 dB(A)

Scope of delivery:

Futuro Plus keyless chuck
rubber-coated side handle
Drilling depth guide
metaBOX 145 L

Rated input power:850 W

Maximum torque:36 / 14 Nm

Drill-Ø masonry:20 mm

Drill-Ø concrete:18 mm

Drill Ø steel:13 / 8 mm

Drill-Ø soft wood:40 / 25 mm

No-load speed:0 - 1100 / 0 - 3100 rpm

Product Code: SBE850-2
