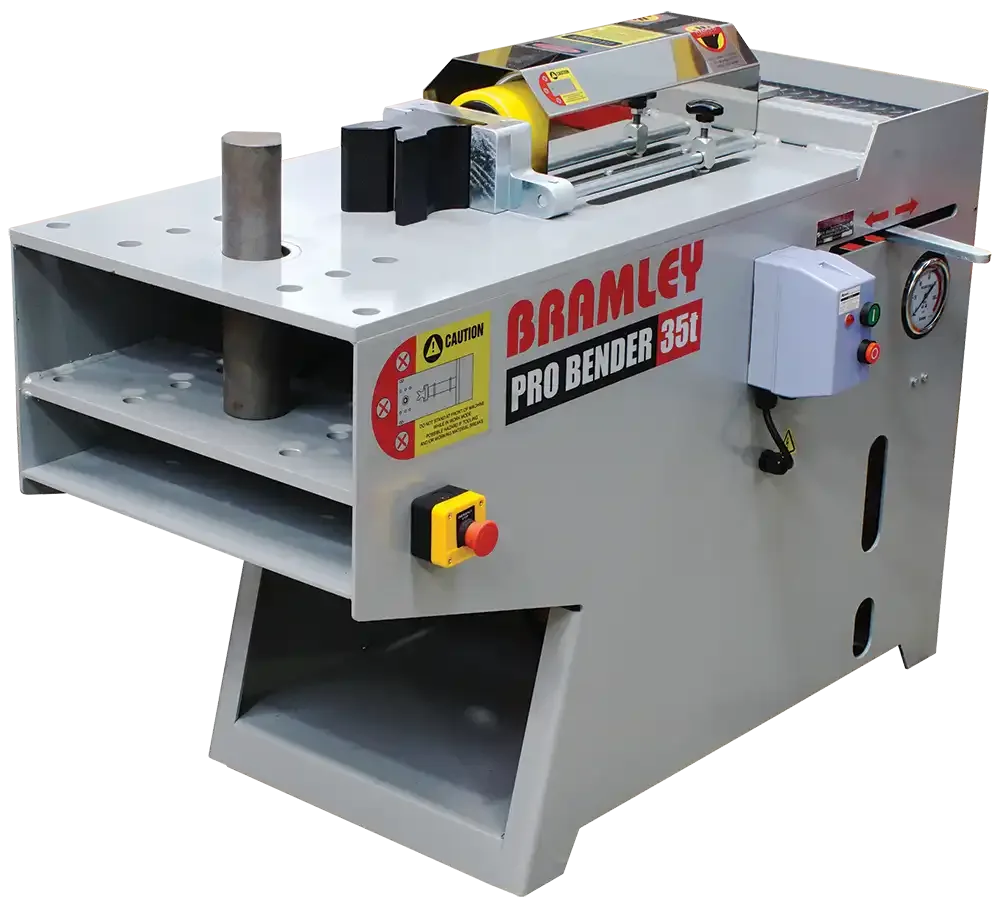

Model 088 ProBender 35T Powered Bender

This is a highly versatile bending machine developed for workshop jobbing through to short run production applications. The built-in index stop can be used to minimize travel and speed up output in repetitive bending applications.

A wide range of optional attachments increase the versatility of the machine. All ProBender attachments are built for full force operation which eliminates the need for pressure regulation, making the machine very simple to use.

Emergency "ESTOP" at working end of machine for safer operation.

Supplied standard with a conventional V Former - 75mm optional attachments are:

Pipe Bender to 2” 50mm

Round Tube Bender to 1” 25mm

Square Tube Bender to 1” 25mm

Large Tube Bender 2” 50mm

Rebar Bender from 1-1/4 or 32mm

Pipe Notcher 1”,1-1/4,1-1/2, 2”

Large V Former 125mm

Model 088 (Standard Supply Bramley ProBender 35t with V Former)

Mild Steel Bending Capacity:

Flat Bar: 100mm x 10mm / 60mm x 12mm / 50mm x 16mm

Square Bar: 25mm x 25mm

Round Bar: Ø25mm

Shipping: 300kg / 1350 x 700 x 980 mm

Proper environmental conditions

Ambient temperature: 0 - 50°C

Relative humidity: 20 - 85%

The required space around the machine is at least 1000 mm

Product Code: 088

Click >HERE for the Operating Instructions
