Block Turf Tyre Wheel Assembly for Light Agricultural and Utility Equipment

• 13×5.00-6 Tyre Size
• 25mm Axle Diameter
• 100mm Hub Length
• Full wheel assembly including block tread turf tyre, rim, and bearings
• Fitted with precision bearings for smooth, reliable operation
• Ideal for rougher ground surfaces where extra grip is required

Commonly found on: agricultural equipment, petrol water blasters, macadamia nut harvesting equipment, mini digger attachments, electric caravan jockey wheels, and ride-on mower front wheels.

Specifications:

Rim RI06X375BB

Size 13 X 5.00-6

Tyre to suit TY13-500-6TUR

Bearing size 6205 X 25 mm (inner diameter)

Hub position Central

Hub Length 100 mm

Max pressure 40 psi

PLY Rating 4 PR

Tread Pattern Block Turf Max

Maximum Load 200kg

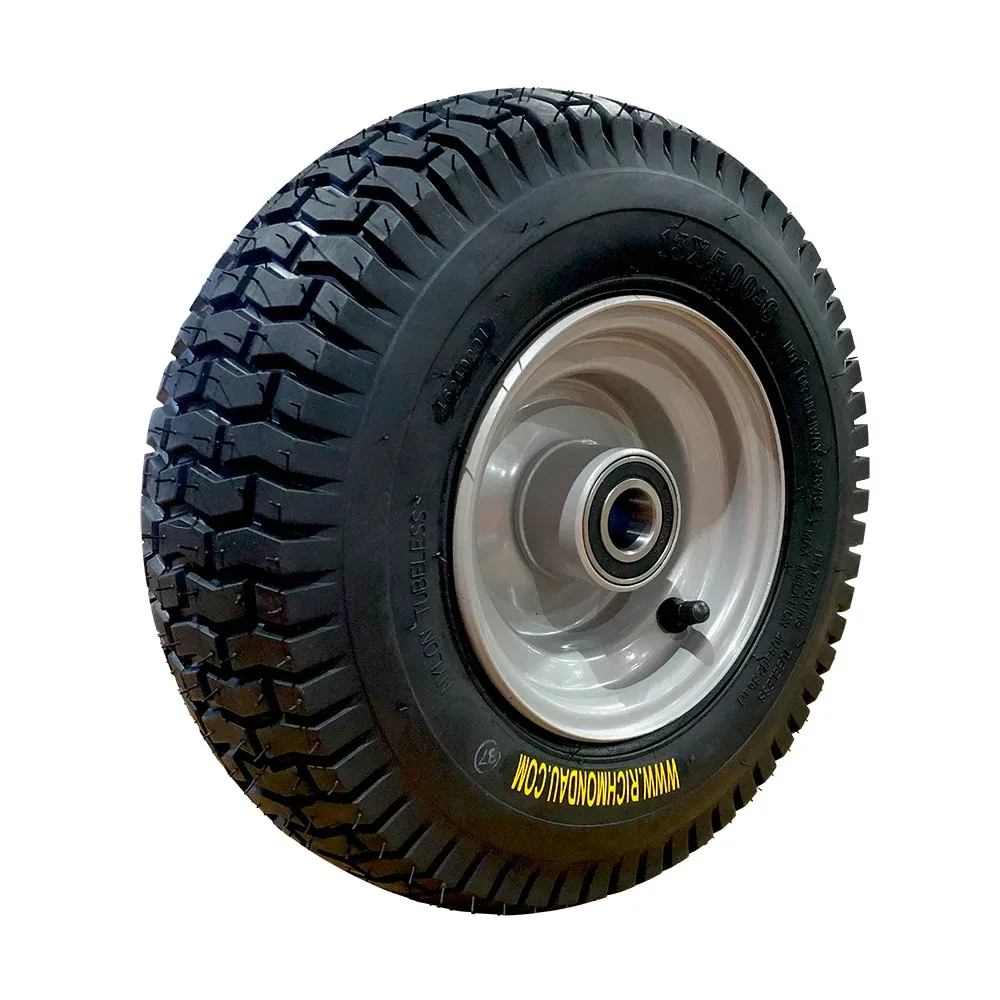

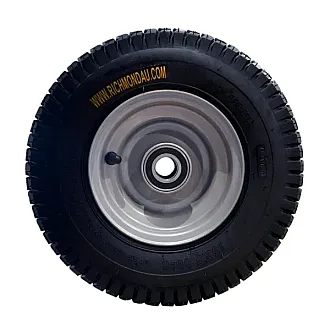

13″ x 5.00″-6 Pneumatic Wheel with 25mm Precision Bearing and Block Pattern Turf Tyre (PN13-500-6BB)

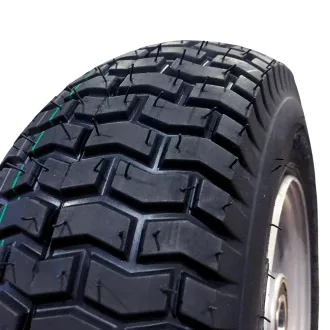

This compact pneumatic wheel assembly is built for light agricultural and utility applications that demand sure-footed grip and dependable performance. Featuring a 13×5.00-6 tyre with a block tread pattern, it’s designed to handle uneven surfaces while minimising damage to turf and soft ground.

The assembly includes a full steel hub with 25mm precision bearings and a 100mm hub length, offering smooth rolling and easy installation on a range of axle setups. The block tread tyre delivers reliable traction where extra grip is required—particularly on rougher, undulating terrain.

Commonly used across a wide variety of machinery—from ride-on mower front wheels to macadamia harvesting gear and electric caravan jockey wheels—this wheel is built to perform in real-world rural and commercial conditions.

Product Code: PN13-500-6BB
