Rated input power:1700 W

Description:

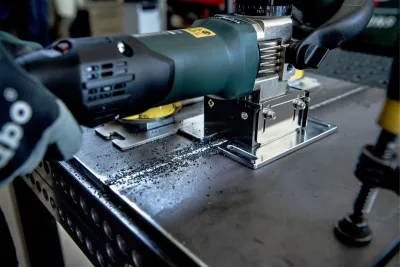

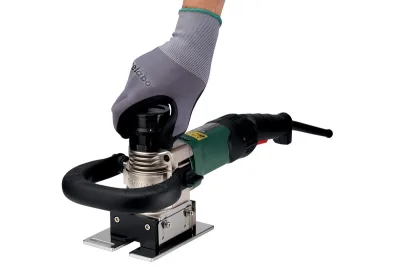

Fast, clean removal of weld beads in one work step with the newly developed metal weld bead remover

Small metal chips are generated during face milling (no metal dust that is a health hazard)

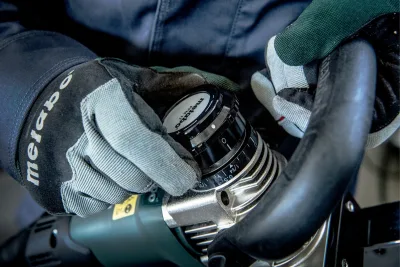

One-touch controller: Patented, tool-free setting of the cutting depth in 0.1mm steps.

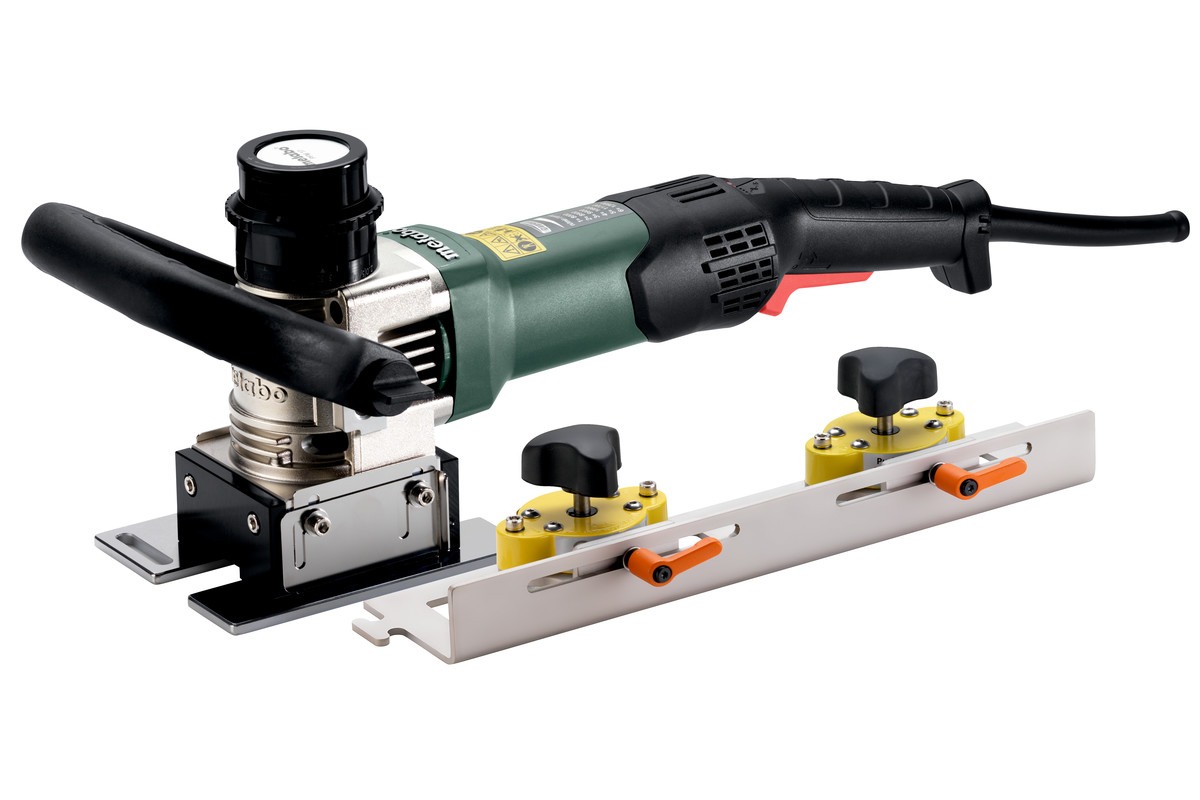

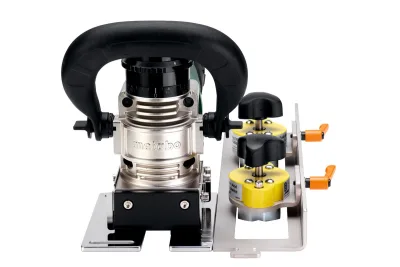

Ready for use in a matter of seconds thanks to fixable, magnetic guide rail (50 cm long, expandable).

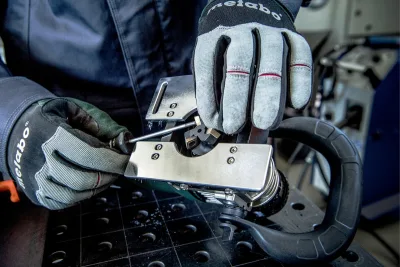

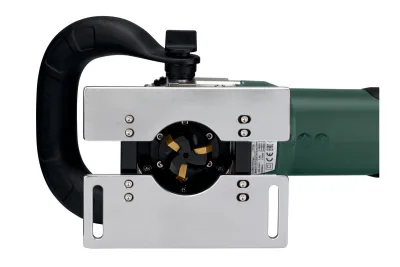

Simple, comfortable change of the indexable inserts at the milling head

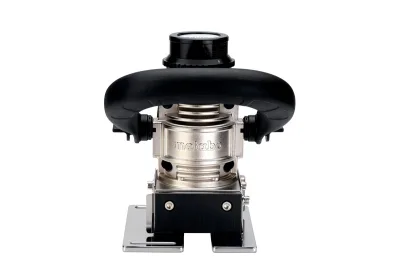

Slim handle area and large bow-type handle that can be adjusted without tools for safe, uniform guidance

Vario Tacho Constamatic (VTC) Full-wave Electronics with Thumbwheel: for working at customised speeds to suit the application material and speeds that remain almost constant, even under load

Electronic soft start and restart protection

With metaBOX, the intelligent solution for transport and storage

The machine shown may differ in equipment and technical details depending on the configuration.

Kindly pay attention to delivery scope and product description.

Accessories included only if listed in the delivery scope.

Technical Data:

Characteristics
No-load speed8000 - 12600 rpm
Rated input power1700 W
Output power970 W
Removal width25 mm
Removal height- 1.5 - 10 mm
Grading of cutting depth setting0.1 mm
Weight (without power cable)4.6 kg
Cable length3.6 m
Vibration
Vibration4.1 m/s²
Uncertainty of measurement K1.5 m/s²
Noise emission
Sound pressure level94 dB(A)
Sound power level (LwA)102 dB(A)
Uncertainty of measurement K3 dB(A)

Scope of Delivery:

Magnetic guide rail (50 cm long)
3 Carbide indexable inserts Universal
Bow-type handle
Screwdriver for Torx screws 15
Screwdriver SW 4 with T-handle
Open-jawed spanner SW 10
metaBOX 280 L

Product Code: PFM17
