Description

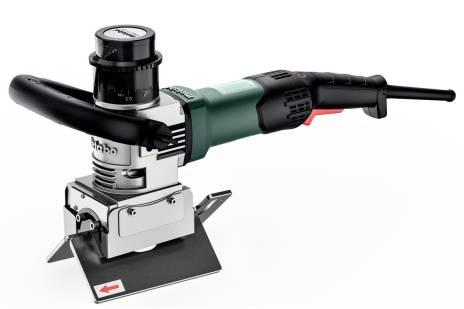

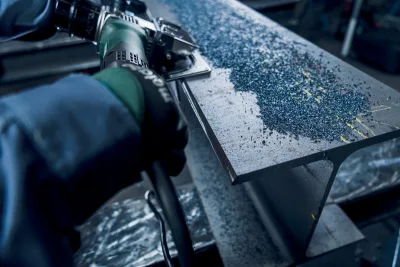

Metal bevelling tool for chamfer heights up to 15 mm for weld seam preparation

One-touch controller: Patented, tool-free setting of the cutting depth in 0.1 steps; stop points for short setting times, and protection against unintentional adjustment of the cutting depth when working

Precise setting of the chamfer angle directly via the guide plates

Universal milling head with three carbide indexable inserts for all chamfer angles from 0-90°

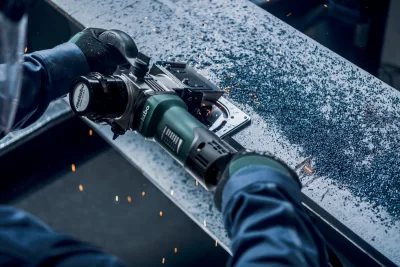

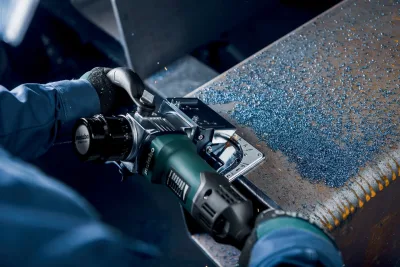

Guide stop for a uniform finish and high quality surface finish when processing straight edges

Controlled working by virtue of large-scale guide plates

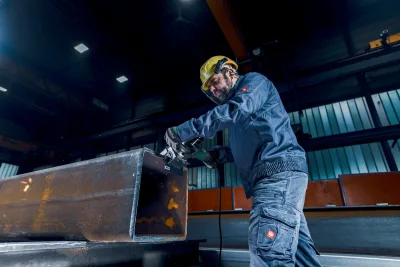

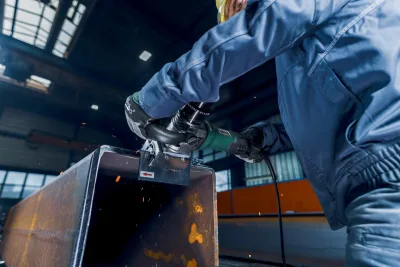

Stop roller to guide along pipes for easy preparation of weld seams

Bail handle adjusts without tools for secure, even guiding

Metabo Marathon-motor with patented dust protection for long service life

Vario-Tacho-Constamatic (VTC)-Full Wave Electronics with Thumbwheel: for working at customised speeds to suit the application material and speeds that remain almost constant, even under load

Electronic overload protection, soft start and restart protection

Slim design for ideal handling

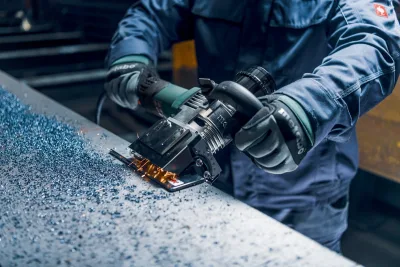

Protection of the user by virtue of lateral plates for conveying the chips

With metaBOX, the intelligent solution for transport and storage

The machine shown may differ in equipment and technical details depending on the configuration.

Kindly pay attention to delivery scope and product description.

Accessories included only if listed in the delivery scope.

Technical data

Characteristics
No-load speed6200 - 12000 rpm
Rated input power1700 W
Output power880 W
Type of edgesChamfer
Chamfer angles0 - 90 °
Max. chamfer width 45°21 mm
Max. chamfer height at 45°15 mm
Grading of cutting depth setting0.1 mm
Curves smallest outer Ø100 mm
Weight (without power cable)6.3 kg
Cable length3.9 m
Vibration
Vibration5 m/s²
Uncertainty of measurement K1.5 m/s²
Noise emission
Sound pressure level99 dB(A)
Sound power level (LwA)107 dB(A)
Uncertainty of measurement K3 dB(A)

Scope of delivery

3 Carbide indexable inserts Universal
Stop roller
Screwdriver for Torx screws 15
Screwdriver SW 4 with T-handle
Open-jawed spanner SW 10
Bow-type handle
metaBOX 185 XL

Product Code: KFMV17-15F
