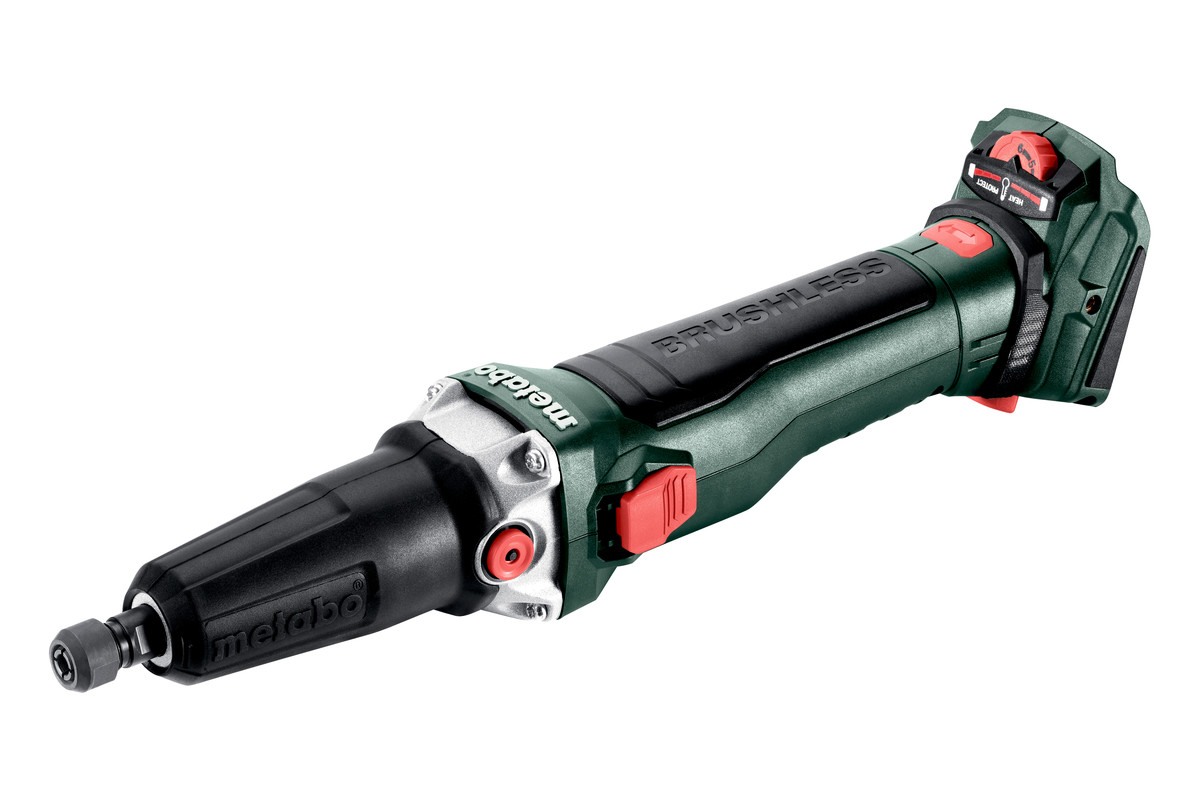

Product Description

Powerful cordless die grinder with long grinding spindle also for demanding grinding applications, also in hard-to-reach places

High torque also with low speeds, therefore ideal for working with flap grinding wheels

Variable speed setting for working with different materials

Particularly slim handle area for optimum handling and low-fatigue working

Spindle lock for simple change of tools

High degree of user safety thanks to fast brake for quick stop of the tool being used ( 1 sec)

Powerful like a 1,100 Watt mains-powered tool thanks to efficient, service-free Brushless motor

Electronic overload protection, soft start and restart protection

Rubber cap for comfortable and safe working

Battery pack can be rotated in 90°steps for best ergonomics in any working position

Easy-to-clean dust protection filter protects motor from coarse particles

Many brands, one battery pack system: This product can be combined with all 18V battery packs and chargers of the CAS brands: www.cordless-alliance-systems.com

Product Highlights

Brushless Motor

Unique Metabo brushless motor for quick work progress and highest efficiency for any application

Restart protection

prevents unintentional start-up after power supply interruption

Spindle lock for simple change of tools

Spindle lock for simple change of tools

Electronic safety shutdown of the motor for safe working in case the tool stops unexpectedly

Electronic safety shutdown of the motor for safe working in case the tool stops unexpectedly

Electronic soft start

for smooth start-up

CAS, the multi-brand battery system

100% compatibility of machine, battery packs and chargers of one volt class – from Metabo and other brands. Discover now at www.cordless-alliance-system.com

Vario Tacho Constamatic (VTC) Full-wave Electronics with Thumbwheel

for working at customised speeds to suit the application material and speeds that remain almost constant, even under load

Fast Break

fast brake for increased safety with fast stopping of the tool used.

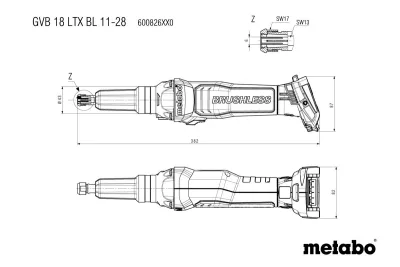

Technical Details

Battery voltage 18 V

No-load speed 1500 - 7000 rpm

Collar diameter 43 mm / 1 11/16 "

Collet chuck bore 6 mm / 0.2362 "

Weight without battery pack 1.5 kg / 3.3 lbs

Weight with battery pack 2.2 kg / 4.9 lbs

VIBRATION

Grinding with a mounted point 4.6 m/s²

Uncertainty of measurement K 1.5 m/s²

Surface grinding (up to Ø 25 mm) 1.3 m/s²

Uncertainty of measurement K 1.5 m/s²

Surface grinding (up to Ø 50 mm) 2.6 m/s²

Uncertainty of measurement K 1.5 m/s²

NOISE EMISSION

Sound pressure level 88 dB(A)

Sound power level (LwA) 96 dB(A)

Uncertainty of measurement K 3 dB(A)

Scope of delivery

Collet 6 mm

Protective rubber cap

Dust Protection Filter

Open-jawed spanner

without battery pack, without charger

Product Code: GVB18LTXBL
