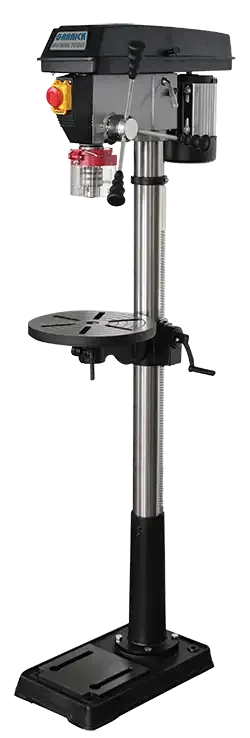

Model DPW16

Ideal for the jobbing workshop

Description:

Garrick Workshop Drill Presses have been specifically configured to deliver maximum features and performance during intermittent work duty.

This is a great drill press for your home, farm or light engineering workshop. The full-size floor mount pedestal format sets it at an easy working height and frees up bench space. It will provide accurate drilling capabilities for all nature of jobs you may have. The maximum hole size of 16mm will cover the majority of work encountered, while the table size will enable complex shapes to be bolted down and positioned where required. The easy height adjustment via the rack and pinion will aid safety and speed of operation.

The no voltage safety switch ensures your safety is maintained even with power outages, while the flip up safety guard around the chuck is quick to operate but keeps swarf away from the operator, especially the face and eyes.

Features:

NVR (No Voltage Release) Safety Switch
Safety Microswitch on belt guard, prevents running with unguarded belts
Safety Guard with flip up cover for quick chuck access
3 piece steel handles with non-slip rubber grips
Drilling depth gauge
Rack & pinion height adjustment
Cast iron table +45° to 0° to -45° table tilt left and right
Includes Drill Chuck & Arbor, Chuck Key and Drill Drift

Specifications:

MODEL DPW16
Type Pedestal
Motor 550W
Drive Belts A Section
Max Drilling Diameter Ø16mm
Chuck Capacity 3-16mm
Spindle Travel 80mm
No. of Speeds 12
Speeds 180-2770 / 220-3320 rpm
Spindle Taper MT2
Spindle-column Distance 162.5mm
Spindle-Table Distance 725mm
Spindle-Base Distance 1205mm
Swing 325mm
Table Size Ø290mm
Base Size 460 x 270mm
Column Diameter Ø 72mm
Height 1580mm
Net weight 40kg
Carton Size 1110 x 460 x 275mm

Product Code: DPW16
