Heavy-duty Industrial Drill Presses are specifically designed for long motor-running, continuous use applications.

Three sizes available: 20mm, 25mm & 32mm

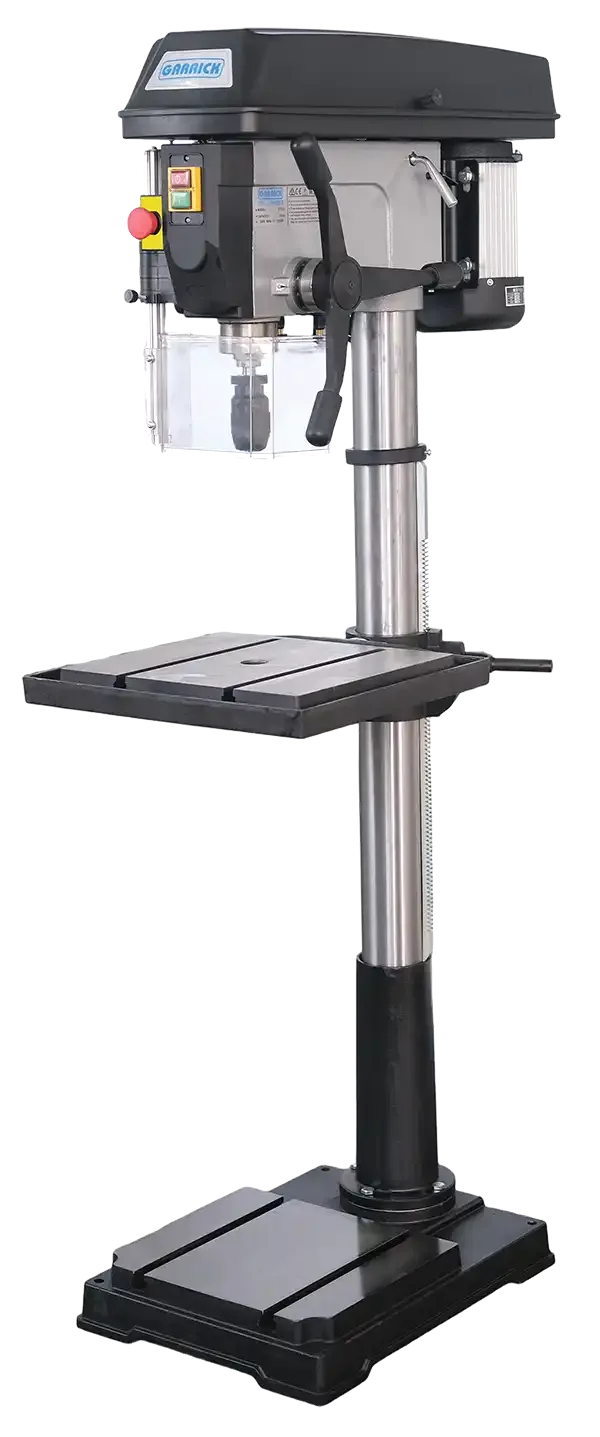

Model DP32-I
Industrial Pedestal Drill
Ø32mm drill capacity with MT4 Spindle Taper

Description:

For larger hole sizes up to Ø32mm this belt drive machine really performs day in, day out. The DP32-I pedestal drill has a large 1500W, 240-volt motor driving the spindle.

This machine is heavy duty rated for industrial use with a large drill head. The large Ø72mm quill provides support to increase accuracy and cleaner drilling, while the 420 x 480mm table offers more surface area to work on.

Constructed mostly from cast iron and machined steel to provide superior stability and strength. The 12-belt speed pulley system offers a wide range of speeds between 150-2450rpm. The down feed handle is also made from cast iron in one solid piece design and fitted with soft hand grips for your comfort & convenient drilling depth feed control.

The drill quill is equipped with a large 4 morse taper spindle allowing you to fit MT4 drill bits directly to the spindle or 1,2 or 3MT drill bits with optional adaptors. A quality Ø1-16mm keyless drill chuck with MT4 arbor is included & fitted. The drill table can tilt left or right, and the height is also easily adjusted up or down via rack & pinion hand lever & can be locked into position. Furthermore, the whole table assembly can be swivelled away to allow the machined base to be used as a work support.

The magnetic safety switch with emergency stop is conveniently front mounted for quick access. The drill also includes an adjustable safety drill chuck guard and the belt cover is equipped with a safety switch to ensure safe belt speed changing.

NEW Features

More powerful S1 Continuous Duty rated motors, aluminium housing
Zero voltage switches
Laser Guides
Keyless chucks
Micro switch Safety Guard with flip up cover over chuck
Emergency stop switches
Standard

Heavy duty ‘A’ section V-belts & pulleys
Quick action, positive motor adjustment for belt tensioning
Heavy-duty precision depth stops
Solid one piece Cast Iron operating handles
Square tables for larger work area, with ‘T’ slots for solid clamping
Tables tilt and rotate
Rack & pinion table height adjustment
Column & Quill precision machined from thick wall tube for rigidity

Specifications:

MODEL DP32-I
Type Pedestal
Motor 1500W
Max Drilling Capacity 32mm
Chuck Size (mm) 1 - 16
Swing (mm) 510
Spindle Taper MT4
Spindle Travel (mm) 120
Spindle-table distance (mm) 255
Spindle-base distance (mm) 745
Spindle-base distance (mm) 1205
No. of Speeds 12
Speed Range (rpm) 150 - 2450
Overall Height (mm) 1710
Column Diameter (mm) 92
Quill Diameter 72
Table Dimensions (mm) 420 x 480
Carton Dimensions 1410 x 660 x 295
Weight (kg) - Nett / Gross 125 / 130

Product Code: DP32-I
