Heavy-duty Industrial Drill Presses are specifically designed for long motor-running, continuous use applications.

Three sizes available: 20mm, 25mm & 32mm

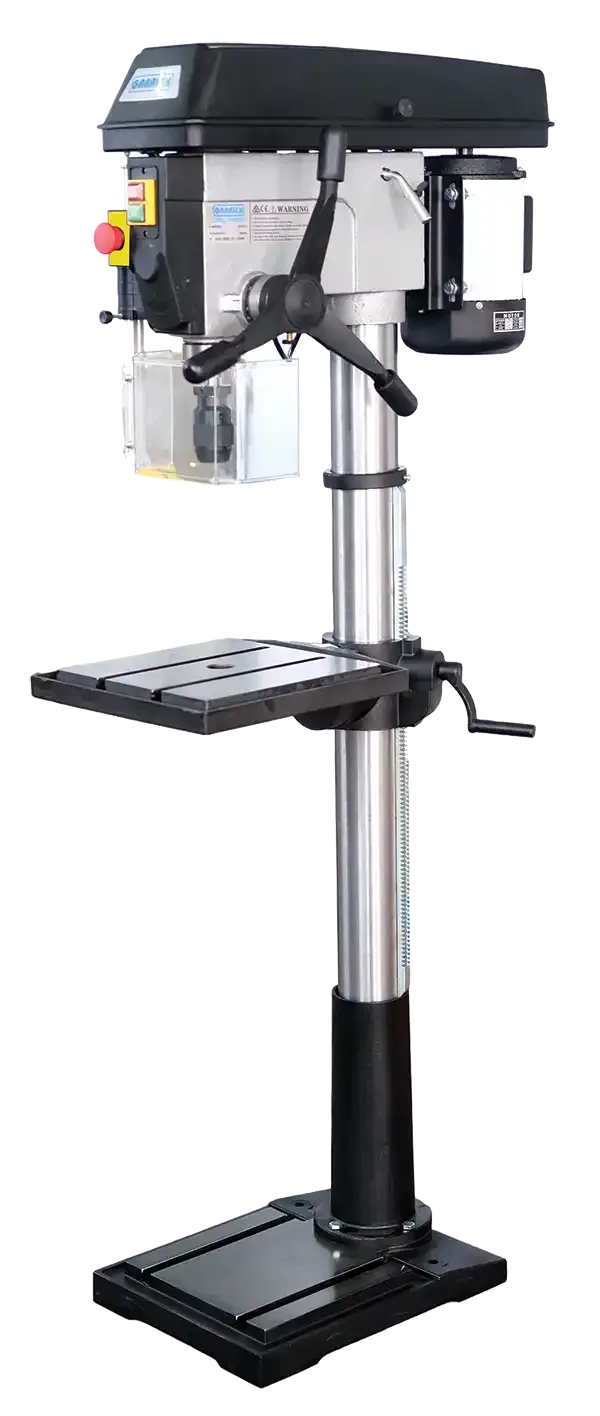

Industrial Pedestal Drill
Ø25mm drill capacity with MT3 Spindle Taper

Description:

If you need to drill holes up to Ø25mm and require a heavy-duty 3 morse taper drilling machine with all the right features to make your job easier and faster, then the DP25-I pedestal drill could be the machine for you.

This machine is heavy duty rated with a large drill head, a larger quill diameter for increased accuracy and the unique square table offers more surface area to work on, allowing T-nut & clamps to be used.

Constructed mostly from cast iron and machined steel to provide superior stability and strength. Powered by a 1100W, 240-volt induction motor and coupled to a 12-belt speed pulley system offering wide range of speeds between 150-2450rpm. The down feed handle is also made from cast iron in one solid piece design and fitted with soft hand grips for your comfort & convenient drilling depth feed control.

The drill quill is equipped with a 3 morse taper spindle allowing you to fit MT3 drill bits directly to the spindle or 1-2MT drill bits with optional adaptors. A quality Ø1-16mm keyless drill chuck with MT3 arbor is included & fitted. The drill table can tilt left or right, and the height is also easily adjusted up or down via rack & pinion hand lever & can be locked into position. Furthermore, the whole table assembly can be swivelled away to allow the machined base to be used as a work support.

The magnetic safety switch with emergency stop is conveniently front mounted for quick access. The drill also includes an adjustable safety drill chuck guard and the belt cover is equipped with a safety switch to ensure safe belt speed changing.

NEW Features

More powerful S1 Continuous Duty rated motors, aluminium housing

Zero voltage switches

Laser Guides

Keyless chucks

Micro switch Safety Guard with flip up cover over chuck

Emergency stop switches

Standard

Heavy duty ‘A’ section V-belts & pulleys

Quick action, positive motor adjustment for belt tensioning

Heavy-duty precision depth stops

Solid one piece Cast Iron operating handles

Square tables for larger work area, with ‘T’ slots for solid clamping

Tables tilt and rotate

Rack & pinion table height adjustment

Column & Quill precision machined from thick wall tube for rigidity

Specifications:

MODEL DP25-I
Type Pedestal
Motor 1100W
Max Drilling Capacity 25mm
Chuck Size (mm) 1 - 16
Swing (mm) 440
Spindle Taper MT3
Spindle Travel (mm) 120
Spindle-column distance (mm) 220
Spindle-table distance (mm) 765
Spindle-base distance (mm) 1225
No. of Speeds 12
Speed Range (rpm) 150 - 2450
Overall Height (mm) 1710
Column Diameter (mm) 92
Quill Diameter 52
Table Dimensions (mm) 350 x 350
Carton Dimensions 1410 x 660 x 295
Weight (kg) - Nett / Gross 100 / 104

Product Code: DP25-I
