Ideal for the jobbing workshop

Description:

Garrick Workshop Drill Presses have been specifically configured to deliver maximum features and performance during intermittent work duty.

This is a great drill press for your home, farm or light engineering workshop. Easily fitted to your existing bench, it will provide accurate drilling capabilities for all nature of jobs you may have. The maximum hole size of 16mm will cover the majority of work encountered, while the table size will enable complex shapes to be bolted down and positioned where required. The easy height adjustment via the rack and pinion will aid safety and speed of operation.

The no voltage safety switch ensures your safety is maintained even with power outages, while the flip up safety guard around the chuck is quick to operate but keeps swarf away from the operator, especially the face and eyes.

Features:

NVR (No Voltage Release) Safety Switch
Safety Microswitch on belt guard, prevents running with unguarded belts
Safety Guard with flip up cover for quick chuck access
3 piece steel handles with non-slip rubber grips
Drilling depth gauge
Rack & pinion height adjustment
Cast iron table +45° to 0° to -45° table tilt left and right
Includes Drill Chuck & Arbor, Chuck Key and Drill Drift

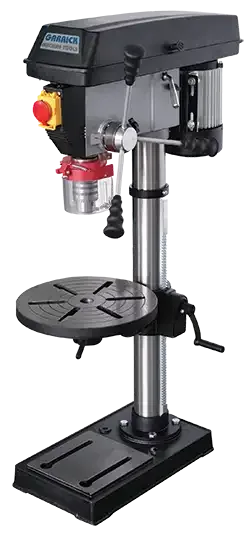

MODEL DBW16

Type Bench

Motor 550W

Drive Belts O Section

Max Drilling Diameter Ø16mm

Chuck Capacity 3-16mm

Spindle Travel 80mm

No. of Speeds 12

Speeds 180-2770 / 220-3320 rpm

Spindle Taper MT2

Spindle-column Distance 162.5mm

Spindle-Table Distance 450mm

Spindle-Base Distance 630mm

Swing 325mm

Table Size Ø290mm

Base Size 420 x 250mm

Column Diameter Ø 72mm

Height 980mm

Net weight 33kg

Carton Size 770 x 450 x 260mm

Product Code: DBW16
