Heavy-duty Industrial Drill Presses are specifically designed for long motor-running, continuous use applications.

Three sizes available: 20mm, 25mm & 32mm

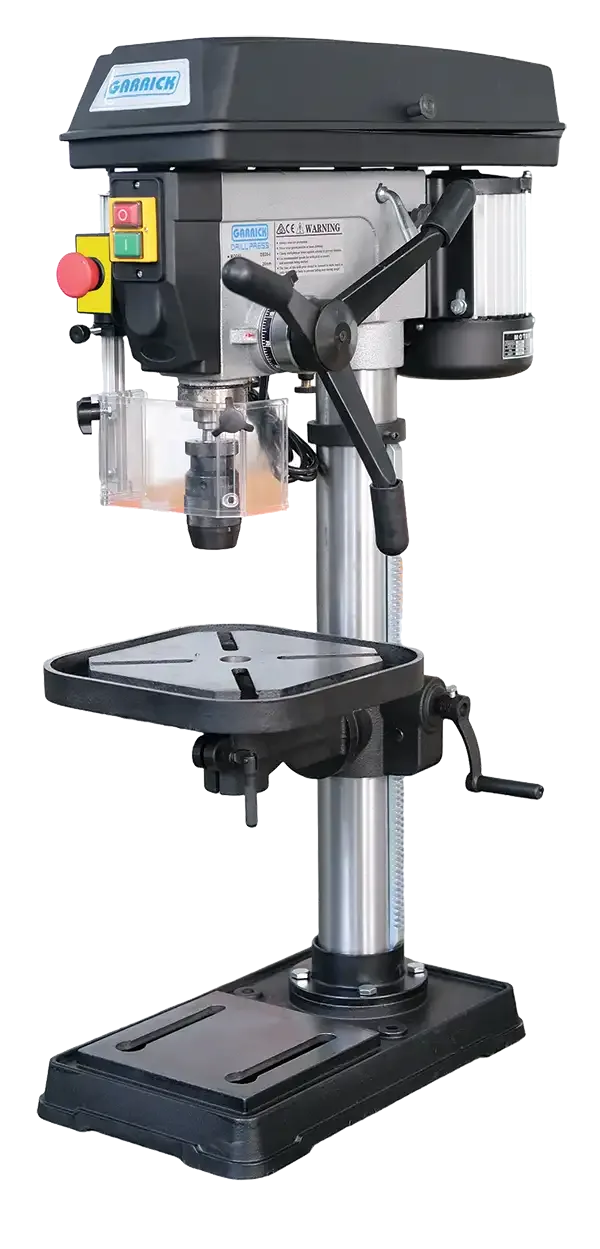

Industrial Bench Drill
Ø20mm drill capacity with MT2 Spindle Taper

Description:

The DB20-I bench drill is a heavy duty rated industrial machine. The square working table offers more surface area to work on, and additionally allows T-nuts & clamps to be used. With a Ø20mm chuck size it is ideal for anyone needing to drill consistent accurate holes and best used in commercial factories or workshops with reasonably high workload.

Constructed mostly from cast iron and machined steel to provide superior stability and strength. Powered by a 750W, 1hp, 240-volt induction motor and coupled to a 12-belt speed pulley system offering wide range of speeds between 280-2380rpm. The down feed handle is also made from cast iron in one solid piece design and fitted with soft hand grips for your comfort & convenient drilling depth feed control.

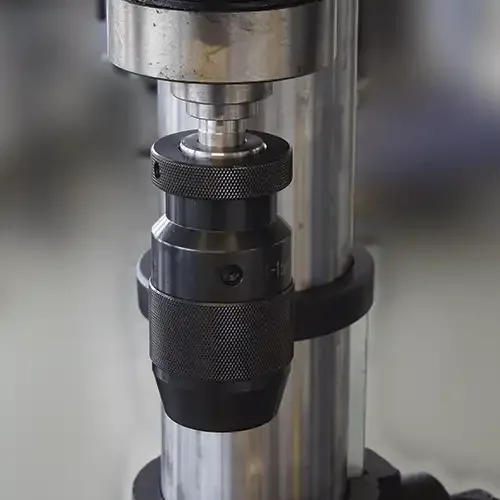

The drill quill is equipped with a 3 morse taper spindle allowing you to fit MT3 drill bits directly to the spindle or 1MT drill bits with an optional adaptor. A quality Ø1-16mm keyless drill chuck with MT3 arbor is included & fitted. The drill table can tilt left or right, rotate 360 degrees and the height is also easily adjusted up or down via rack & pinion hand lever & can be locked into position. Furthermore, the whole table assembly can be swivelled away to allow the machined base to be used as a work support.

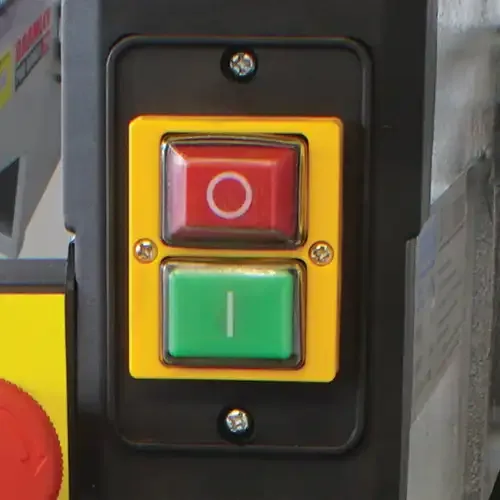

The magnetic safety switch with emergency stop is conveniently front mounted for quick access. The drill also includes an adjustable safety drill chuck guard and the belt cover is equipped with a safety switch to ensure safe belt speed changing.

NEW Features

More powerful S1 Continuous Duty rated motors, aluminium housing

Zero voltage switches

Laser Guides

Keyless chucks

Micro switch Safety Guard with flip up cover over chuck

Emergency stop switches

Standard

Heavy duty ‘A’ section V-belts & pulleys

Quick action, positive motor adjustment for belt tensioning

Heavy-duty precision depth stops

Solid one piece Cast Iron operating handles

Square tables for larger work area, with ‘T’ slots for solid clamping

Tables tilt and rotate

Rack & pinion table height adjustment

Column & Quill precision machined from thick wall tube for rigidity

Specifications:

MODEL DB20-I
Type Bench
Motor 750W
Max Drilling Capacity 20mm
Chuck Size (mm) 1 - 16
Swing (mm) 325
Spindle Taper MT3
Spindle Travel (mm) 85
Spindle-column distance (mm) 176
Spindle-table distance (mm) 620
Spindle-base distance (mm) 810
No. of Speeds 12
Speed Range (rpm) 280 - 2380
Overall Height (mm) 1000
Column Diameter (mm) 80
Quill Diameter 52
Table Dimensions (mm) 290 x 290
Carton Dimensions 990 x 495 x 275
Weight (kg) - Nett / Gross 58 / 60

Product Code: DB20-I
