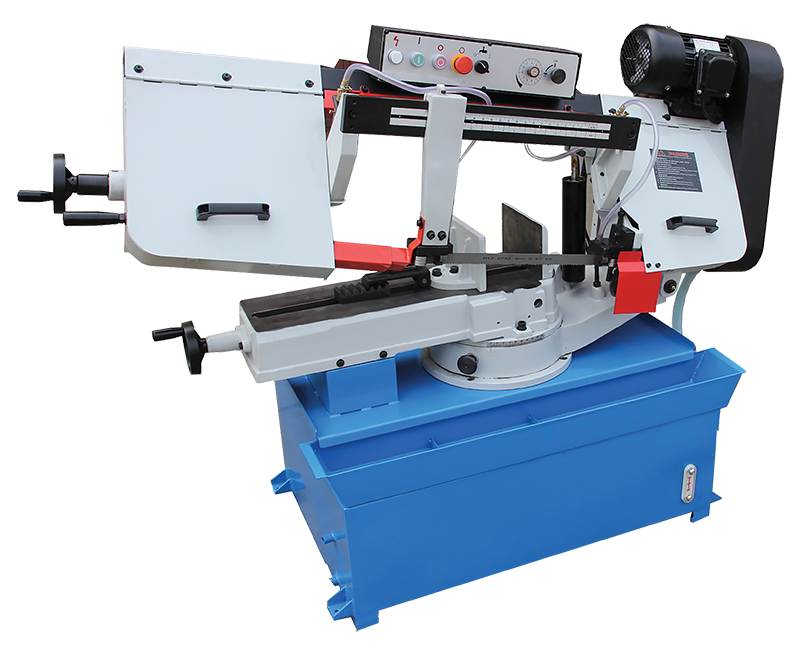

Garrick Model BS1018R

Can replace the function of traditional cold-cut saws, but with greater capacity

Adjustable hydraulic cylinder for automatic feed option

Swivel head can mitre cut to 45°

Ball bearing blade guides

Wide blade minimises run-out for more accurate cutting

Supplied on Machine Stand with integrated coolant system

Manual or automatic down feed operation

MODEL BS1018R

Motor 1.5 kW 3 Ph 2-speed

Blade Size (mm) 3215 x 27 x 0.9

Bow Swivel 0° - 45°

Blade Speed (m/min) 29, 50, 73, 95

Cutting Capacity at 90° 254mm

254 x 254mm

406 x 160mm

Cutting Capacity at 45° 170mm

170 x 170mm

190 x 160mm

Carton Dimensions (mm) 1820 x 780 x 1340

Weight (kg) - Nett / Gross 340 / 440

Product Code: BS1018R
