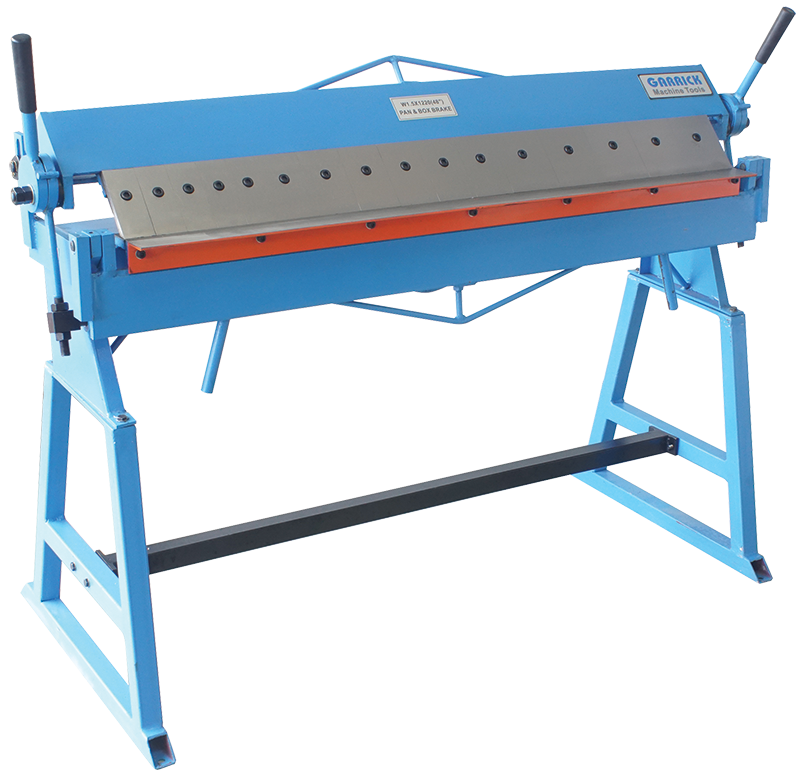

Model 4F - 1220 mm (4 foot) x 1.2 mm capacity

Heavy-duty all steel construction for superior clamping and fold accuracy

Interchangeable fingers for wide variety of box & pan sizes

CAM adjustment on top beam provides simple and positive setting for different material thickness

Simple robust clamping action

Removable nose bar

Mounted on rigid stand for easy access and folding operation

MODEL 4F

Max Bending Length 1220mm (48")

Max. Thickness* 1.2mm (20 Ga)

Max. Box Depth 100mm

Max. Lift of Beam 32mm

Beam Adjustment 6.5mm

Shipping 160kg / 0.73m3

* For uniform tight bend across the full face of the bend. Will successfully bend up to 2.0mm (14 SWG) over shorter faces.

Product Code: 4F
