Description

Marquip industrial belt drive 'DC' (Dual Control) compressors feature

Automatic STOP/START pressure switch (PS) control and automatic free-running air governor (AG) control

Air displacement of 445lpm, Free air delivery of 300lpm

Depending on compressor use and duty, the best method of operation can be chosen to suit the job

Heavy duty cast iron pump has cast iron cylinders, air cooled by a large fan-type flywheel

Efficient air intake filters reduce noise and low revving speed extends pump life

German made pressure switch

Italian check valves

Vibration resistant liquid filled gauges

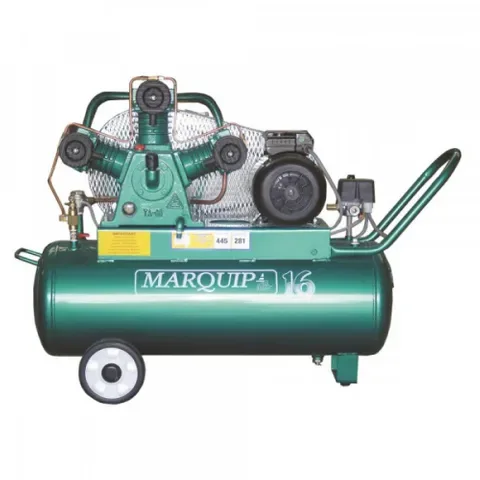

Model 16RSE Specifications

Air Receiver - 50L

Air Displacement - 445lpm - 15.7cfm

Free Air Delivery (FAD) - 300lpm

Max Pressure - 135psi

Power - 2.0kW - 2.7HP

Pump - TA65

Dimensions (L x W x H) - 110 x 40 x 80

Weight - 81Kg
