Green wicking-grade threadlocker

Thin, low-viscosity threadlocker has the ability to flow into difficult-to-reach cracks and crevices, making it ideal for locking pre-assembled fasteners.

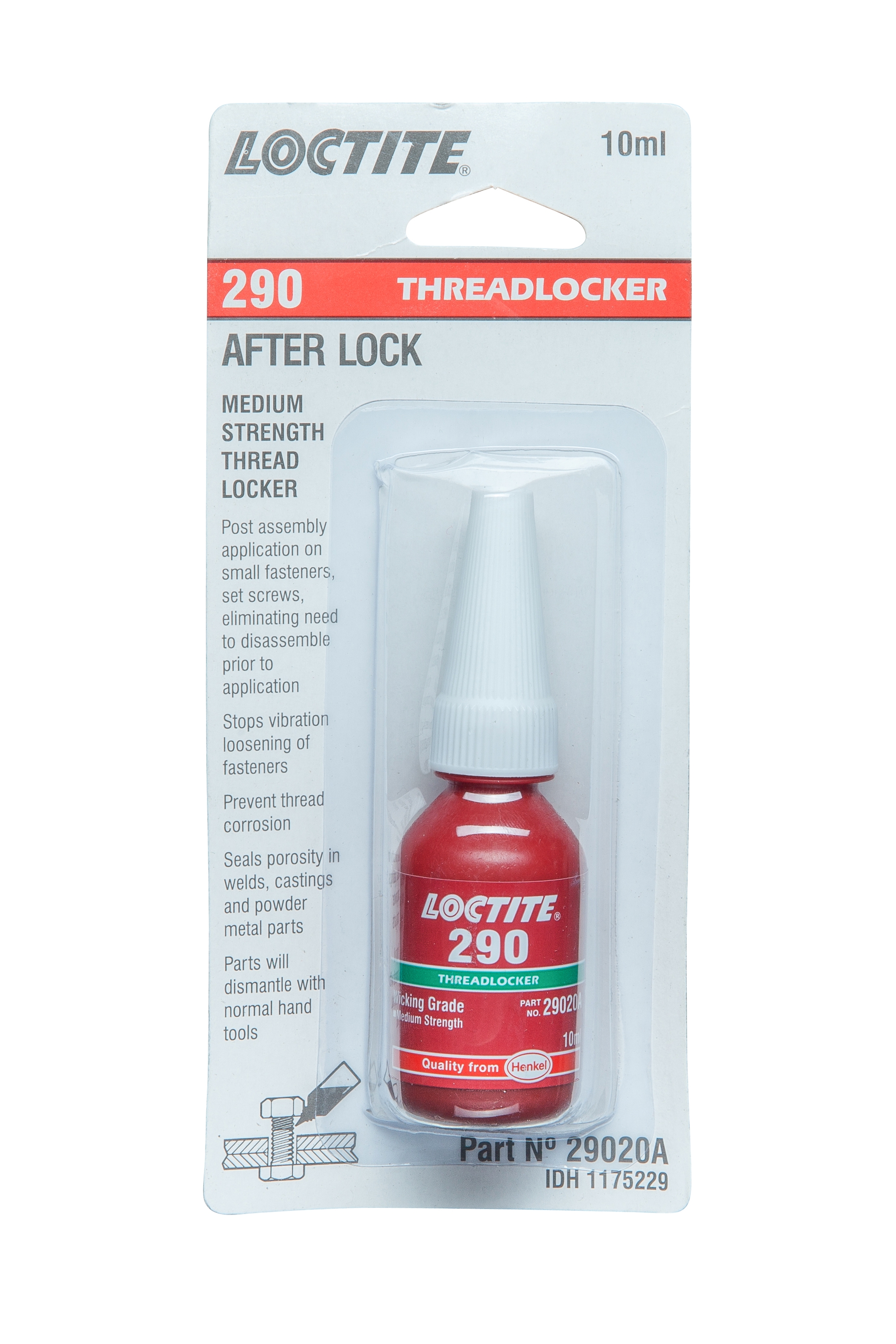

LOCTITE® 290 is a green, medium-high strength threadlocker designed for the locking and sealing of threaded fasteners. Because of its low viscosity, the product wicks between engaged threads by capillary action and eliminates the need for disassembly prior to application. This makes it ideal for sealing porosity in welds, castings and powdered metal parts. The anaerobic adhesive cures when confined in the absence of air between close-fitting metal surfaces and prevents loosening and leakage due to shock and vibration.

Prevents fastener loosening on vibrating assemblies, e.g., pumps, gearboxes, presses

Ideal for locking pre-assembled fasteners, e.g. instrumentation fasteners, electrical connectors and set screws

Seals porosity in welds, castings and powdered metal parts

Requires heat for disassembly

Application method: Post applied

Application temperature: -55.0 °C - 150.0 °C (-65.0 °F - 300.0 °F)

Applications: For pre-assembled fasteners; Porosity sealing; Threadlocking

Breakaway torque, M10 Steel Nuts/Bolts: 10.0 N·m (90.0 in./lb.)

Colour: Green

Cure type: Anaerobic cure

Fixture time: 20.0 min

Key characteristics: Disassembly: disassembly with heat; Fluorescent; Strength: medium to high strength; Viscosity: low viscosity; Wicking / penetrating grade

Physical form: Liquid

Prevail torque, M10 Steel Nuts/Bolts: 29.0 N·m (260.0 in./lb.)

Recommended for use with: Metal: brass; Metal: steel; Metal: steel - stainless steel

Viscosity, Speed 20 RPM: 40.0 mPa·s (cP)

Product Code: 1175229
