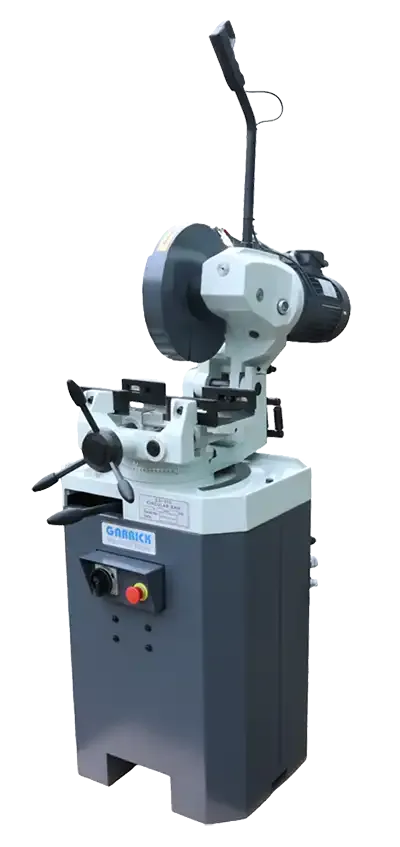

Garrick Circular Cold-Cut Saws are designed to provide fast, economical cutting of all types and shapes of Ferrous Metals with a precision, burr-free milled finish.

Description:

315mm cutting capacity,

1 phase/1-speed OR 3-phase/2-speed manual operation Circular Cold-cut Saw

Garrick Circular Cold-Cut Saws are designed to provide fast, economical cutting of all types and shapes of Ferrous Metals with a precision, burr-free milled finish.

They have a heavy duty cast iron gearbox, fully supported gears, balanced & adjustable pivot point, automatic blade guard cover, quick release vice mechanism for repeat cutting, and built in blade coolant system, all making these saws especially suitable for industrial use.

Features:

Variable mitre cutting from +45° to -45° with degree scale
Rapid action, dual-clamping and self-centering vice
Spring Assisted Head return
Built in blade coolant system with flow control
Automatic enclosed blade
Deadman switch on operating handle
Stand mounted switching and eStop

Specifications:

MODEL 0315-1PH 0315-3PH
Motor 240V Single Phase 415V Three Phase
Speeds 1-speed 2-speed
RPM 36 18 / 36
Power 1.1kW / 1.5 HP 1.3kW / 1.7HP
Shipping 263kg / 0.78m3 263kg / 0.78m3

Product Code: 0315-1PH
